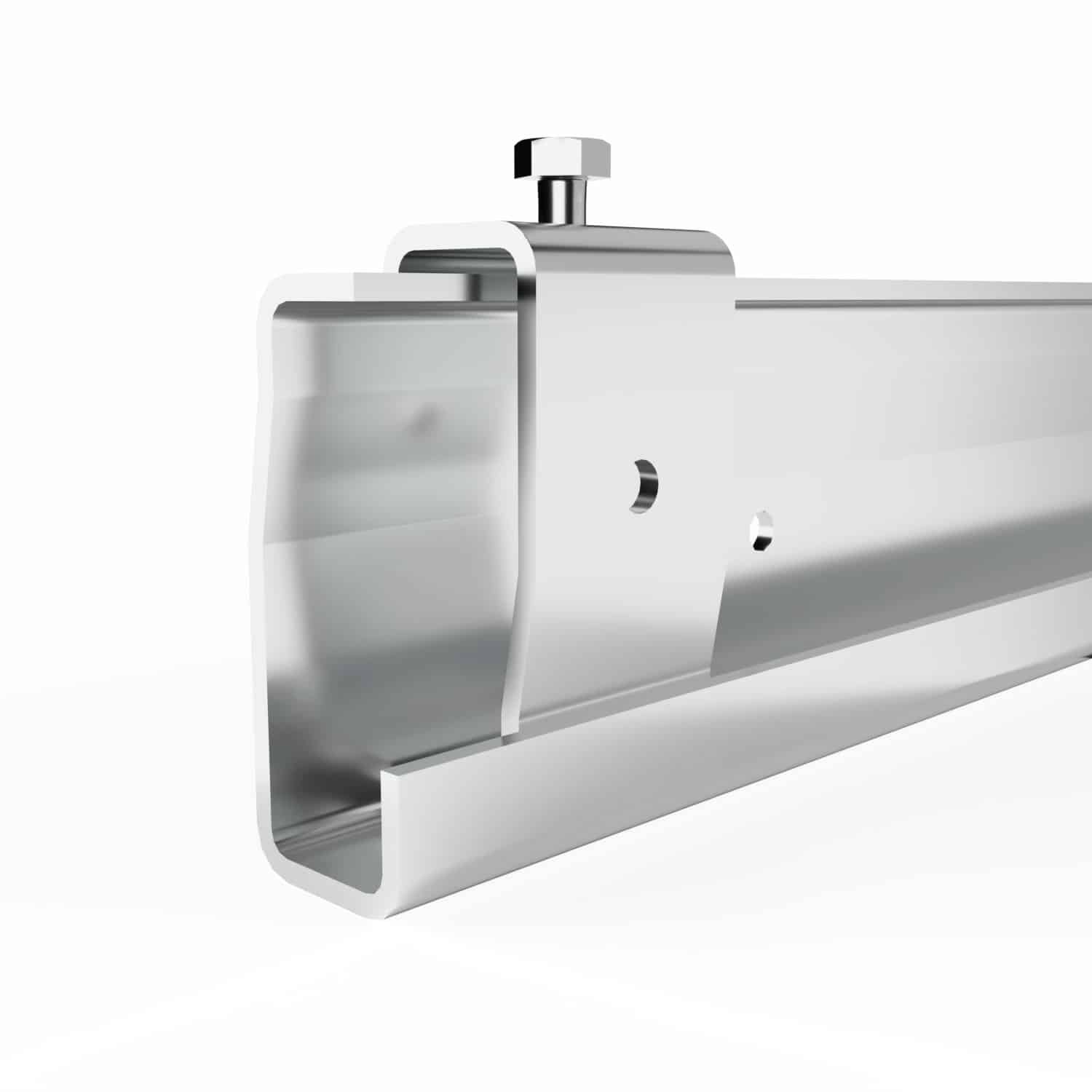

MFSTR-SSXCLAD

Concealed Fastener System

  • Concealed fastener mounting system
  • Available in 304 and 316 stainless steel
  • Rail available in lengths up to 10′ in 11 Ga., 14 Ga. and 16 Ga. stainless steel
  • Clips can be drilled to accommodate various fasteners for connecting the clip to the back side of the panel, including high strength, undercut anchors
  • Can be manufactured with 2 holes or 1 hole per clip
  • Clips offered with a panel height adjustment mechanism
  • Undercut anchors, such as the Keil Undercut anchors, often have centrical pull fracture loads of more than 750 pounds* when properly installed
Important Notes:
(1) Fracture loads vary widely depending upon the material
