Interior Ceiling Panel System, Aluminum Rails, 7/8 Inch Projection, 3/16 Inch Lift-Off, MCPS

MODEL: MCPS

The Monarch Ceiling Panel System (MCPS) provides a secure, adjustable solution for ceiling installations using interlocking aluminum rails that prevent panel movement in all directions. Designed to work with a wide range of panel materials, the system allows fast installation, easy access, and full panel removal without disturbing adjacent hardware.

Why Installers Choose MCPS

Clean, concealed hardware
Fast alignment with interlocking rails
Easy access to plenum and mechanicals
No pre-drilled holes — full flexibility on-site
Progressive system supports long runs and sequential installs

Build Your Ceiling Panel System

Select Your Components

The MCPS Interior Ceiling Panel System is designed to be ordered by component so you can build a layout that fits your project requirements. Ceiling rails and panel rails or clips are not sold together as sets.

Start by selecting your ceiling rail lengths, then choose the appropriate panel rails or clips based on panel type and installation sequence.

Adjust quantities as needed and add each item to your cart.

* Depending on the number of items added, it may take a few seconds to process your request. Please click “Add Selected to Cart” once and allow the system to complete the action.

Select Ceiling Rails

SKU	Length	Price
MCPS-CR-48	48 in	$17.50
MCPS-CR-72	72 in	$18.69
MCPS-CR-144	144 in	$34.51

Select Panel Rails or Clip

SKU	Length	Price
MCPS-PC-6	6 in	$7.44
MCPS-PR-48	48 in	$13.20
MCPS-PR-72	72 in	$15.97
MCPS-PR-144	144 in	$25.28

Subtotal: $0.00

* Depending on the number of items added, it may take a few seconds to process your request. Thank you for your patience.

Learn About System Key Features

To learn about some of the unique features of our Interior Ceiling Panel System, click on the hot spots (+) to reveal additional information.

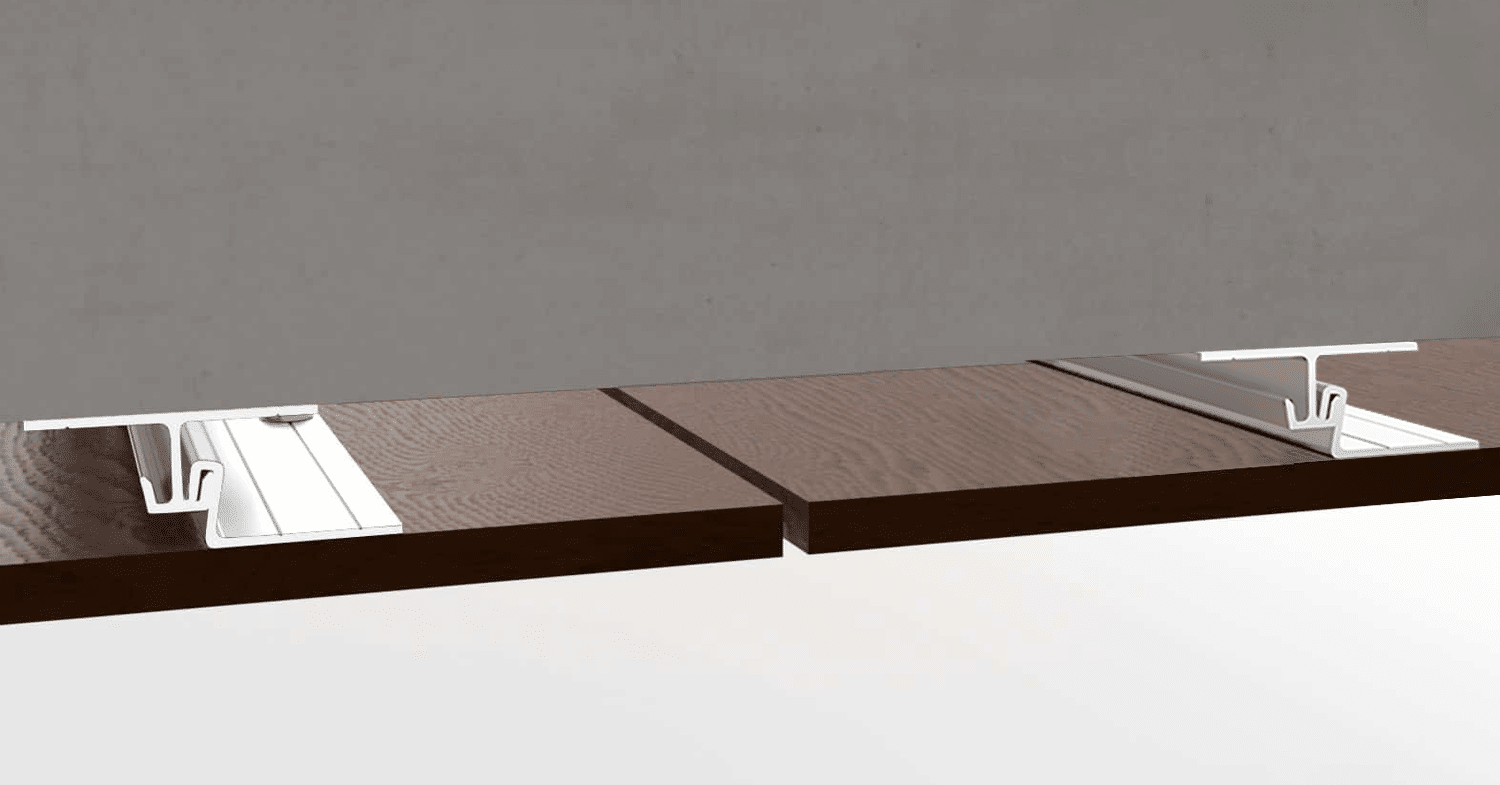

Interior Ceiling Panel System, Aluminum Rails, 7/8 Inch Projection, 3/16 Inch Lift-Off, MCPS | Key Features

Product Description

About the MCPS Interior Ceiling Panel System

The MCPS Interior Ceiling Panel System is designed for secure, and fully removable ceiling installations where stability, precision, and ease of access are essential. Manufactured from durable 6063-T6 aluminum, the system uses interlocking ceiling rails and panel rails or clips while maintaining a clean, concealed attachment method. This coordinated rail system allows panels to be installed sequentially or slid into place, making it ideal for both new construction and retrofit environments.

The MCPS provides a 7/8 inch projection with a 3/16 inch lift-off, enabling smooth removal of individual panels. Panel components are compatible with common materials such as wood, MDF, and HPL, and can also integrate with SPS reveals when using 3/8 inch (10 mm) panels. Stock options include 6 inch panel clips and continuous rail lengths in 48, 72, and 144 inches to accommodate projects of all sizes.

MCPS rails and clips are stocked items and available for same-day shipping. Holes are not pre-punched, but integrated scribe marks simplify field drilling and reduce installation labor.

Ceiling rails and panel rails are sold separately and are not packaged as sets.

Key Features of MCPS Interior Ceiling Panel System

Stock Material: 6063-T6 aluminum
Panel Compatibility: Wood, MDF, HPL, and most materials that accept fasteners
Stock Clip Size: 6 inch panel clip
Stock Continuous Rail Lengths: 48 inch, 72 inch, and 144 inch options
Lift-Off: 3/16 inch
Projection: 7/8 inch
Design: Interlocking rail system
System Type: Progressive installation with sequential panel engagement
Use Environment: Interior ceilings requiring secure and removable panels
Availability: Stocked with same-day shipping

MCPS Interior Ceiling Panel System Installation & Compatibility

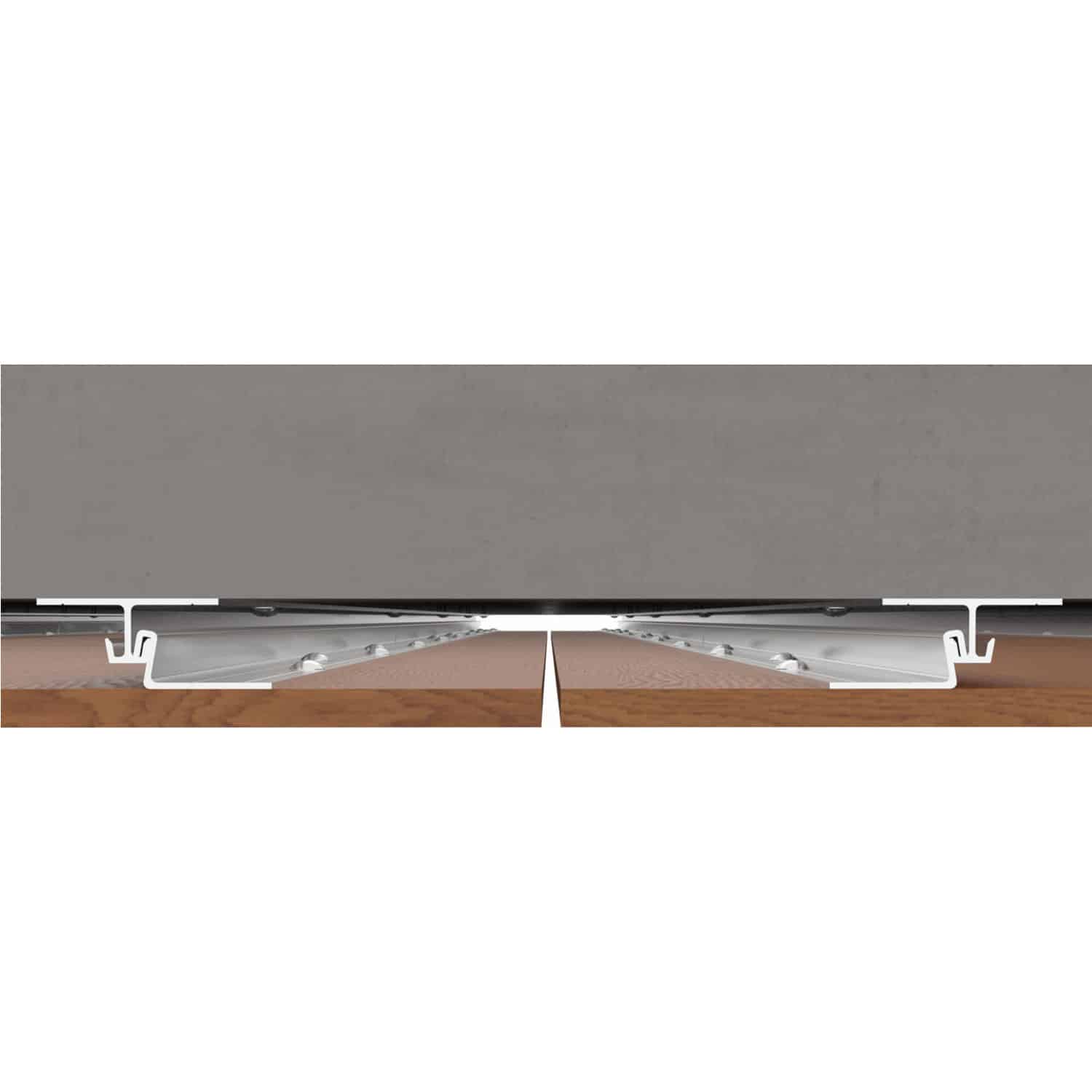

The MCPS Interior Ceiling Panel System is engineered for flexible installation across a wide range of ceiling layouts and panel materials. Installers can select the configuration that best aligns with project requirements, access needs, and site conditions. The interlocking rail design ensures secure engagement while allowing panels to be installed sequentially or slid into position for simplified coordination.

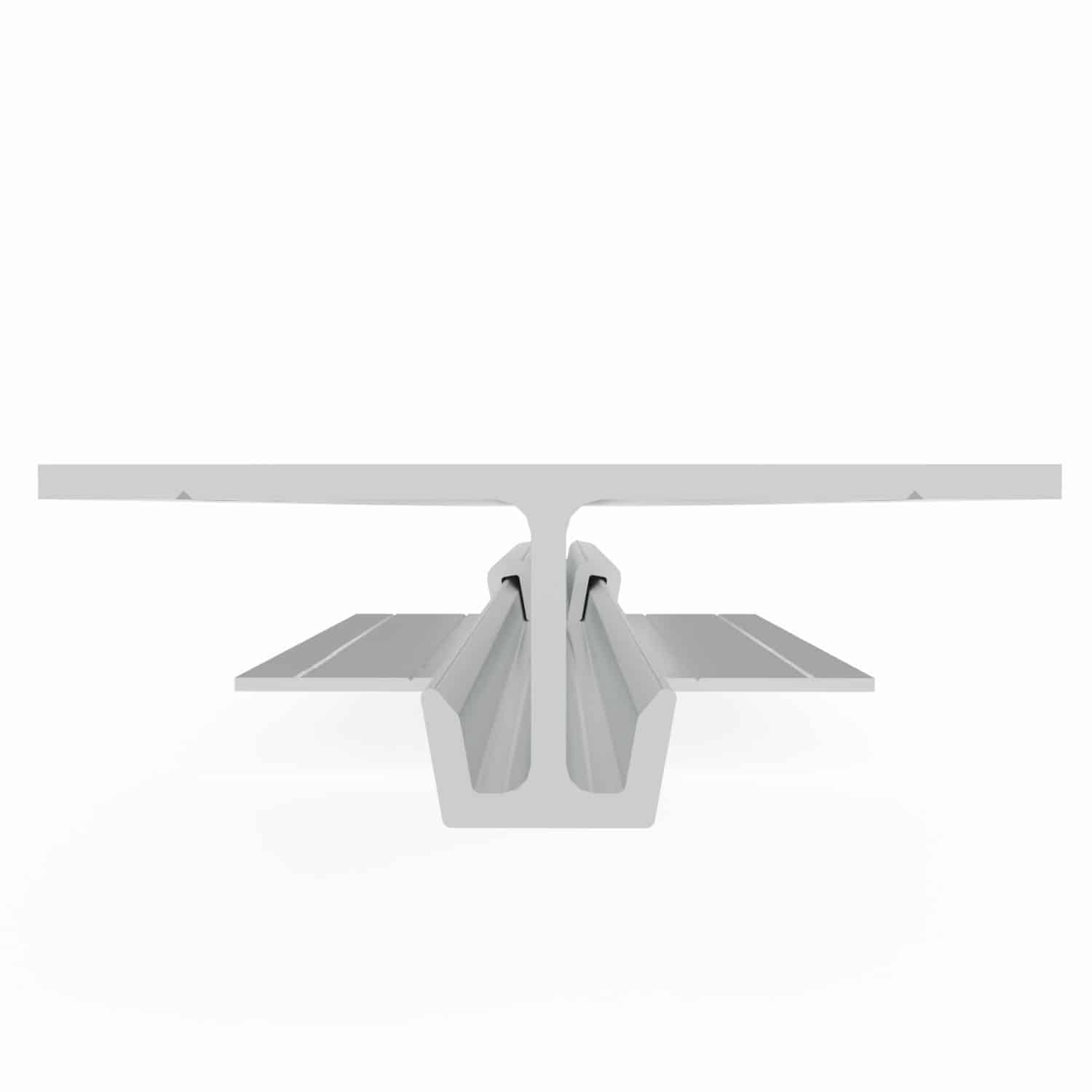

Mating Options: Panel clip to ceiling rail or panel rail to ceiling rail
Installation Methods: Mechanical fasteners recommended; rails include scribe marks for easy field drilling
Compatibility: Wood, MDF, HPL, and most ceiling panel materials capable of holding fasteners; also compatible with SPS reveals when using 3/8 inch (10 mm) panels
Installation Clearance Required: Minimal clearance needed; designed for full panel removal without disturbing adjacent panels
Installation Note: Ceiling rails, panel rails, and panel clips are sold separately and individually, not as sets

Best Uses for MCPS Interior Ceiling Panel System

Interior ceiling panel assemblies
Architectural ceiling designs requiring clean, concealed hardware
Spaces needing frequent access to plenum areas or mechanical systems
Commercial, institutional, and retail environments
Projects requiring secure panel alignment with fully removable access

Ordering and Custom Options

Stock MCPS Rails and Clips (6063-T6 Aluminum): Standard 48 inch, 72 inch, and 144 inch rails and 6 inch panel clips are available through direct sales. Use the Request a Quote form for pricing and availability.
Custom Lengths: Project-specific rail lengths and configurations can be provided upon request. Submit details through the Request a Quote form.
Hole Customization: Rails ship without holes, and scribe marks support field drilling. Factory hole drilling is available by request.
Samples: MCPS rail and clip samples are available for evaluation before purchasing. Request a Sample.

Ceiling System Profiles

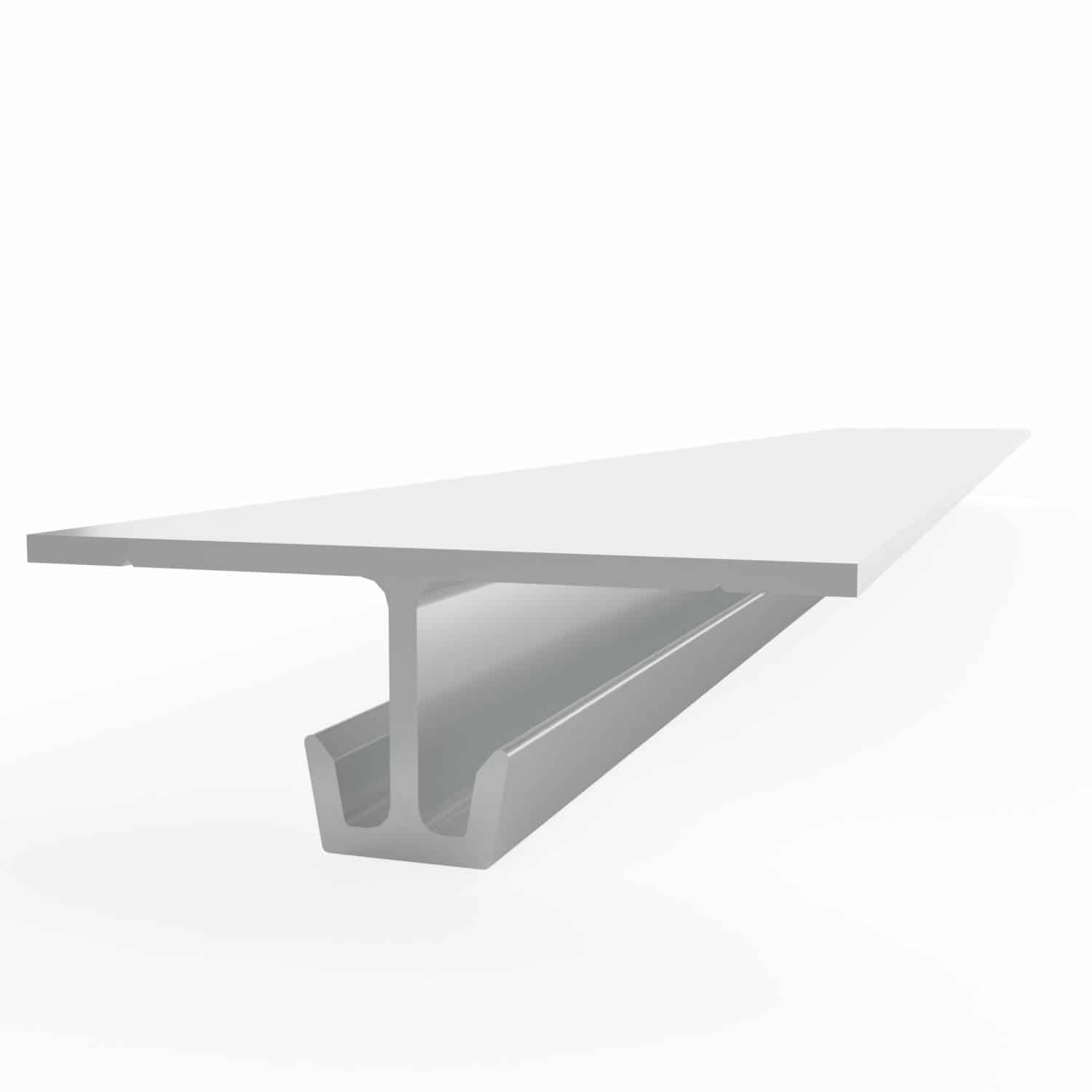

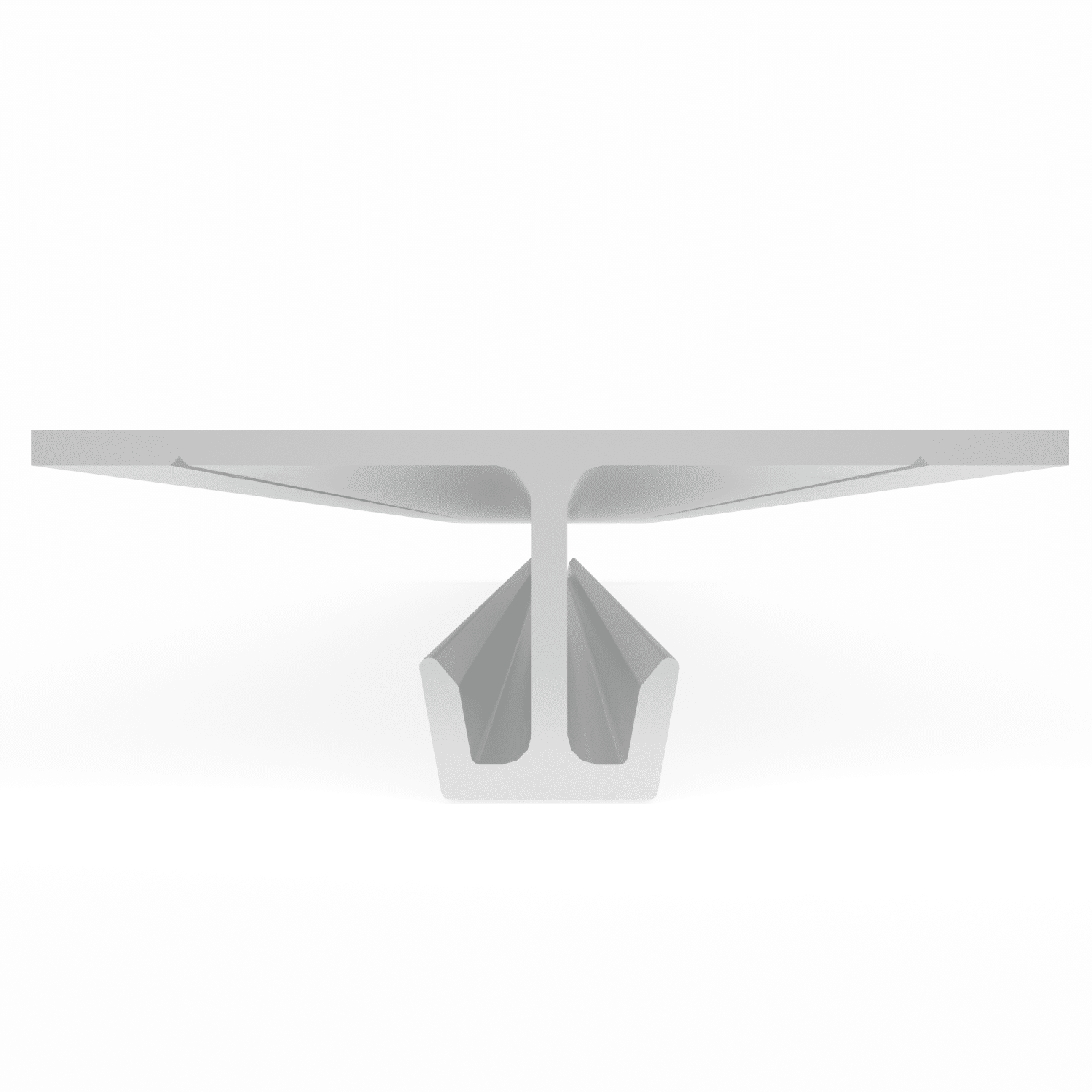

MCPS-CR

Ceiling Rail

Primary structural rail fastened to the ceiling substrate. Provides the receiving channel that supports and aligns panel rails or clips for secure installation. Available in 48 inch, 72 inch, and 144 inch lengths.

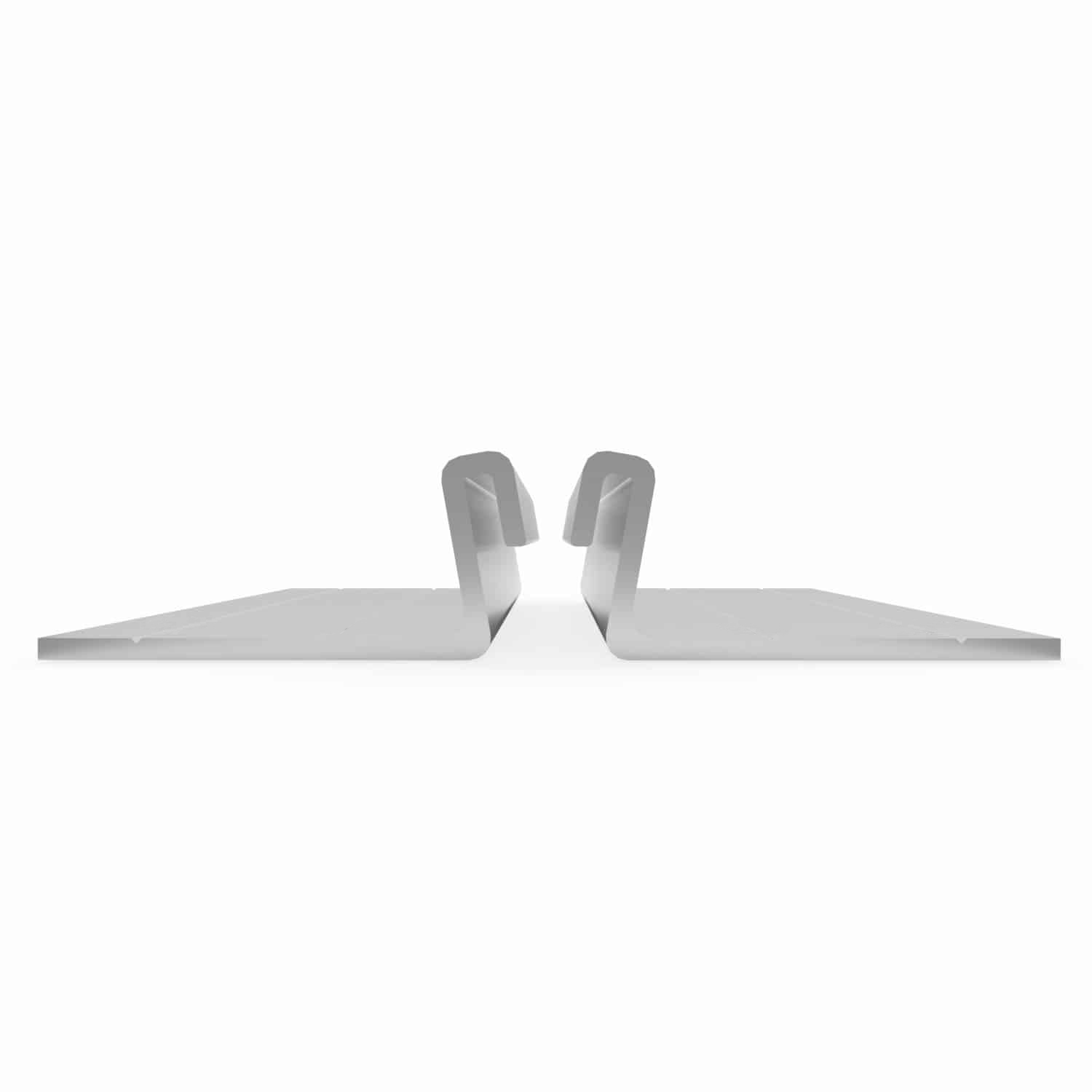

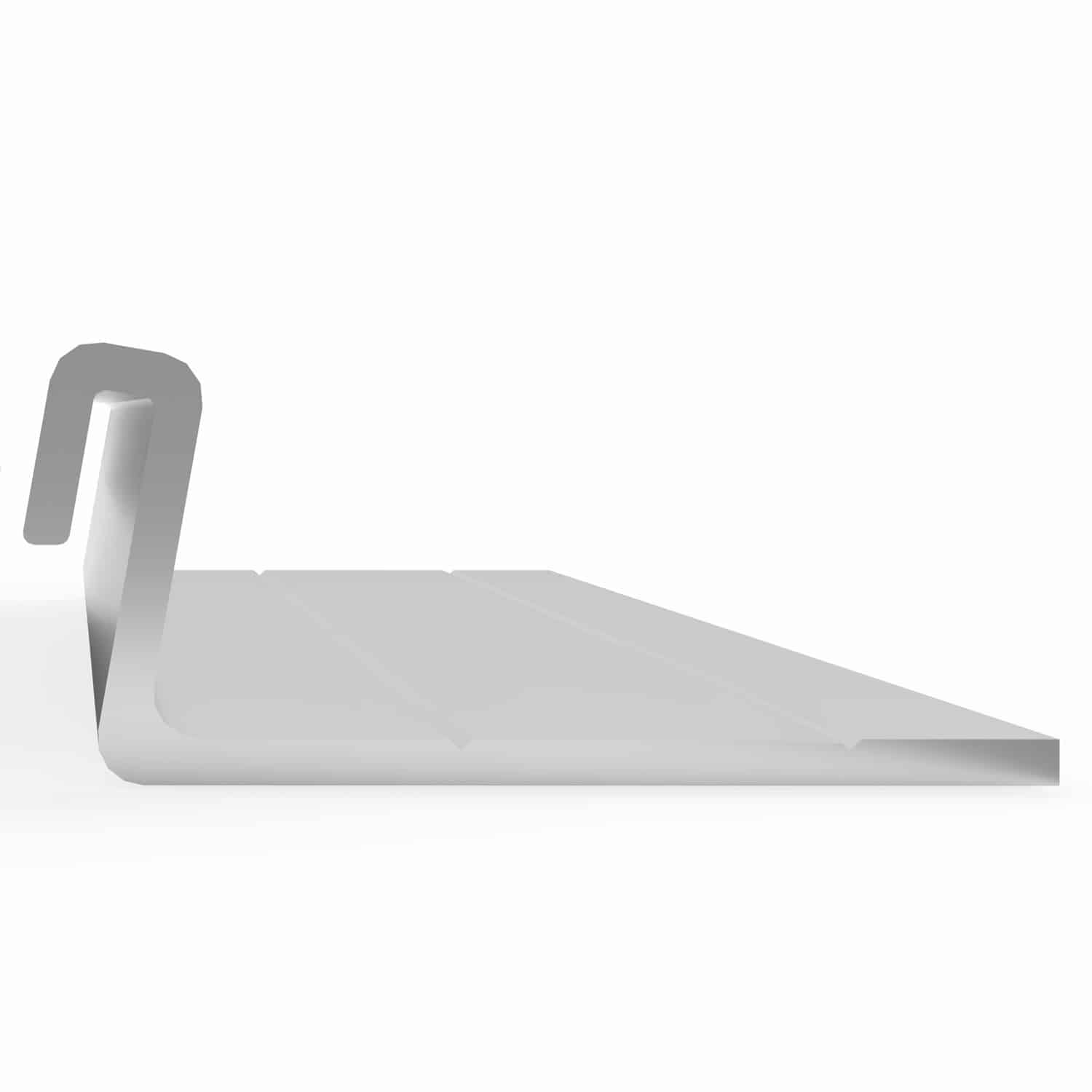

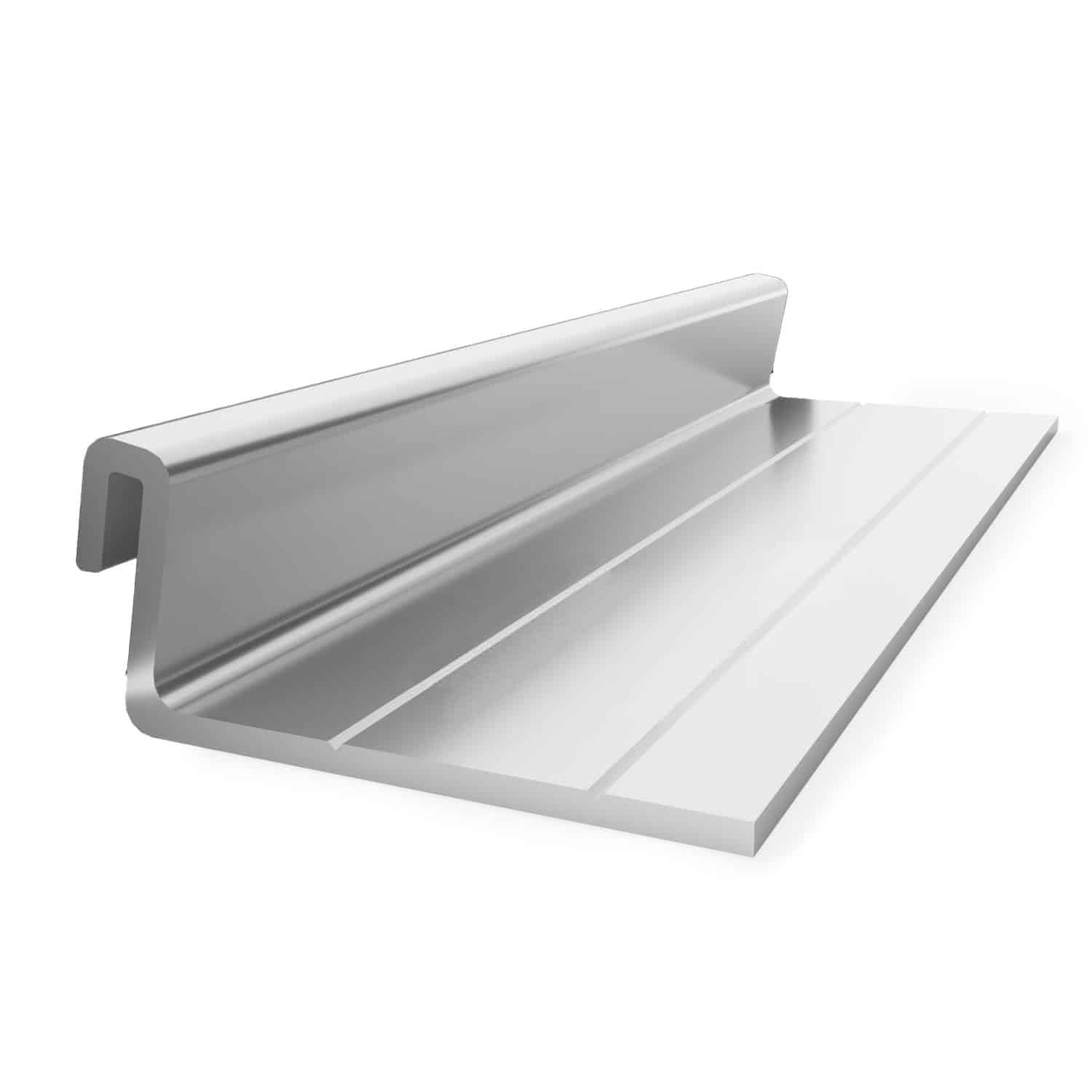

MCPS-PR

Panel Rail

Attaches directly to the back of ceiling panels and interlocks with the ceiling rail to create a stable, removable panel system. Available in 48 inch, 72 inch, and 144 inch lengths.

MCPS-PC

Panel Clip

Compact alternative to panel rails for shorter spans. Fastens to the panel and engages the ceiling rail for secure retention and easy lift-off access. Available in 6 inch length.

Frequently Asked Questions

What is the maximum weight capacity of the MCPS system?

The weight capacity depends on the number of rails or clips used and the pull-out strength of the fasteners securing the panel. Installers should reference fastener pull-out values for the specific panel material and apply a minimum three times safety factor. Structured load testing is planned for future documentation.

Does the MCPS come with pre-drilled holes?

No. MCPS rails ship without holes. Each rail includes scribe marks that make field drilling simple. This helps reduce internal labor costs and gives installers the flexibility to place fasteners where needed. Self-drilling screws are commonly used, and the aluminum material drills easily.

What is the largest fastener size that can be used with this system?

The MCPS can accept up to number 12 diameter screws for fastening panel rails and up to one quarter inch screws for securing ceiling rails. Head sizes vary widely by manufacturer, so low-profile wafer heads are recommended to ensure adequate clearance.

What panel thicknesses are compatible with the MCPS?

The system works with most common panel thicknesses and materials that can hold a fastener, including wood, MDF, HPL, and similar substrates. The MCPS can also integrate with SPS reveals. If using SPS edge trims, panels must be ⅜” (10 mm).

Is the MCPS a progressive panel system?

Yes. The MCPS is designed as a coordinated, progressive system. Panels are installed and removed in sequence, which requires planning during layout. Depending on the installation, panels can also be slid from one end of the ceiling to the other, allowing easier engagement along longer runs.

How should I install the ceiling rails and panel rails?

For ceiling rails, fasten perpendicular to the ceiling joists with fasteners spaced 16 to 24 inches on center.

For panel rails, use staggered fasteners spaced 12 to 16 inches apart.

Take-off services are available if you need assistance planning quantities for your project.

Can I request a take-off for my project?

Yes. Monarch provides take-off support to help determine the correct quantities of ceiling rails, panel rails, and panel clips for MCPS installations.

Specifications & Downloads

Weight	N/A
Dimensions	N/A
Length	6 Inch, 48 Inch, 72 Inch, 144 Inch
Material	6063-T6 Aluminum
Lift Off	3/16 Inch
Projection	7/8 Inch
Availability	Same Day Shipping
