EPS-039-ADAPT

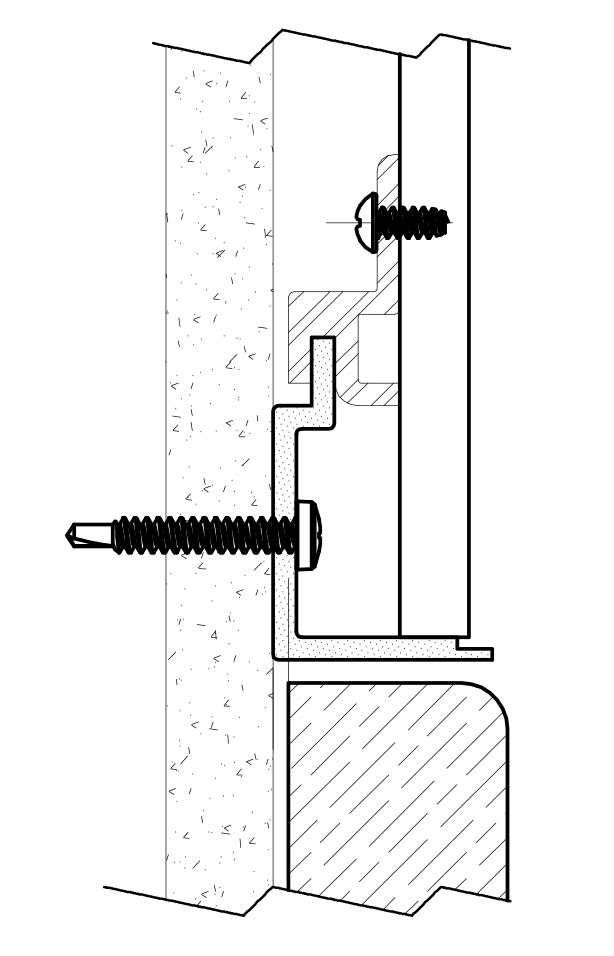

Panel Bracket designed to allow a 3/8″ panel to work in our 3/4″ Panel Easy Panel System
Features:
- Bracket designed to engage with our 3/4″ Easy Panel System profiles and allow a 10mm (3/8 inch) panel to be flush with the System
- Mill Finish
- 2″ Brackets
DETAILS
EPS-039-ADAPT | |
---|---|
Material | Aluminum |
Stock Length | 2 Inch |
Custom Lengths Available | Any |

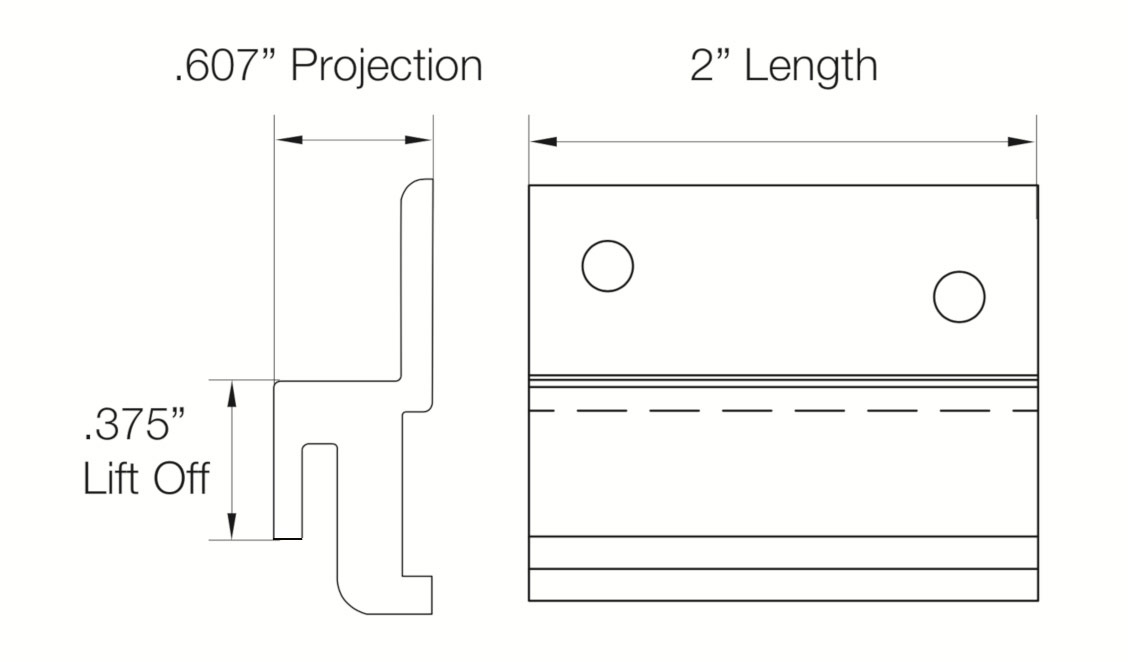

Lift Off (1) | 3/8 Inch |
Projection (2) | .607 Inch |
Availability | Same Day Shipping |
(1) The “Lift-Off” is the amount you need to raise the panel over its resting height to mount the panel.
(2) The “Projection” is the distance that the panel sits out from the wall.
