Zero Lift, Snap-Fit Panel Hanging Solution, 3/8 Inch Projection – MSNAP
Our new patent-pending, zero-lift rail system for installing a wide variety of interior panels. The system is a snap-fit system of clips and rails, designed to allow for 3/8″ projection, or tight to ceilings with no lift off.
Product Description
About MSNAP Zero Lift Modules
Our new zero-lift rail system for installing a wide variety of interior panels. The system is a snap-fit system of clips and rails, designed to allow for 3/8″ projection, or tight to ceilings with no lift off. Being an extruded aluminum snap fit system, it’s very durable, and has a higher weight capacity than its plastic rivals.
Features of MSNAP Zero Lift System
- Zero-lift design allows for 3/8″ projection on walls, ceilings, and other objects
- ⅜” Projection
- 6063-T6 Aluminum
- Available with Panel Clips or Rails, and Wall Rails
MSNAP Installation Options
MSNAP modules are sold in two versions, a light duty version and a heavy duty version. The MSNAP light duty version is sold with 2″ MSNAP-PC2 clips, and MSNAP-WR Rails in 72 or 144” lengths. The heavy duty version is sold as MSNAP-PR and MSNAP-WR continuous rails in 72 or 144” lengths. This allows for the highest weight capacity, and also aids in alignment.
Custom Fabricated MSNAP Components
See How The System Works
Click and drag the arrow sliders to see how the MSNAP System works. The Zero-Lift, Snap-Fit panel system allows for easy installation and replacement of panels.
Lightweight & Easy To Install
Our MSNAP Zero-Lift Snap-Fit System, showcasing the securely installed rails on both the wall and panel. The light duty option includes 2″ panel clips.
Quickly Replace Panels
Easily replace panels with our quick Zero-Lift, Snap-Fit panel system without having to remove any additional hardware. Ideal for tight spaces and ceilings.
Learn About System Key Features
To learn about some of the unique features of our Patent Pending Zero Lift, Snap-Fit Panel Hanging Solution, click on the hot spots (+) to reveal additional information.

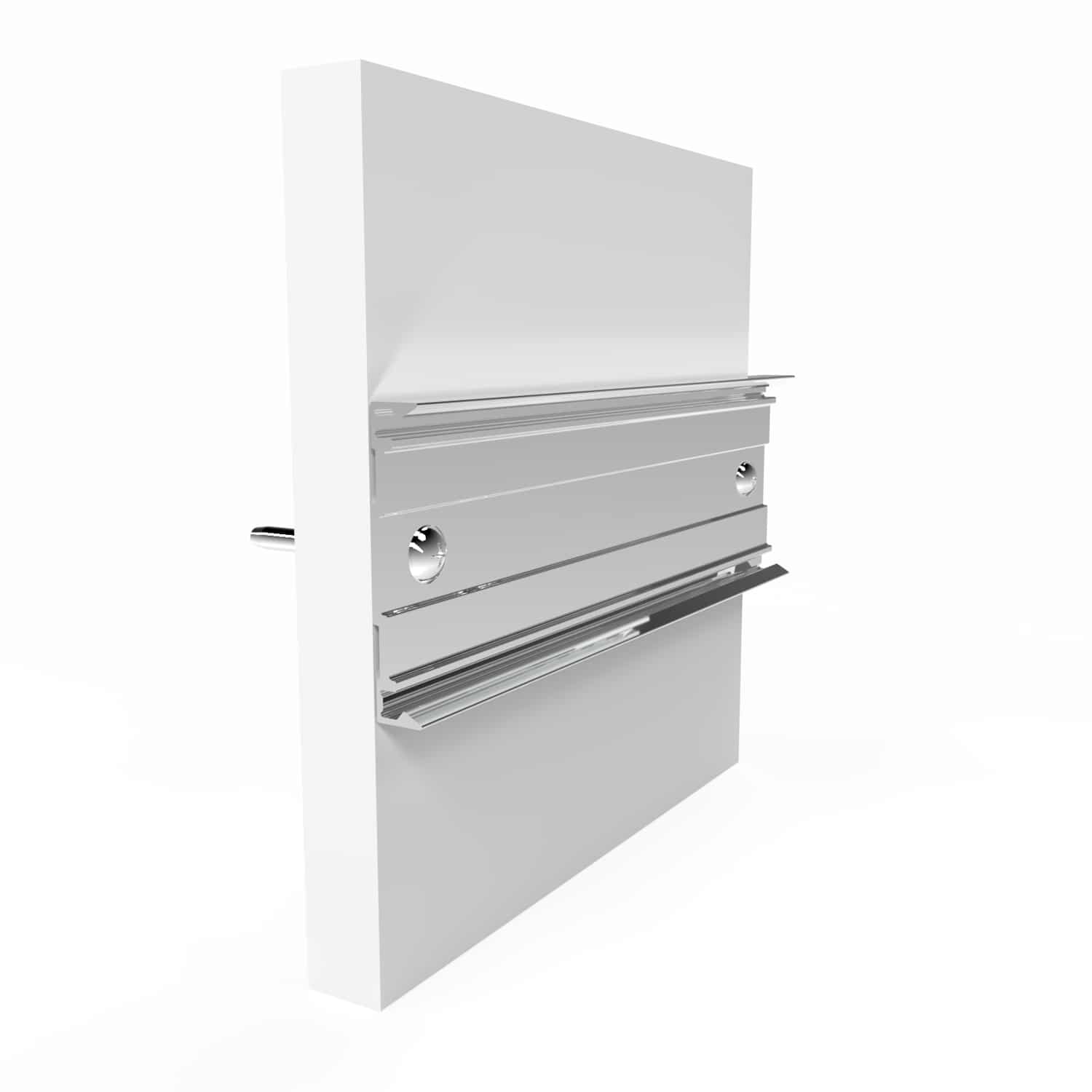

Zero Lift, Snap-Fit Panel Hanging Solution - Wall Rails
Our MSNAP-WR Rails are offered in 72-inch and 144-inch lengths, featuring a zero-lift design that enables a 3/8-inch projection on walls, ceilings, and various surfaces.

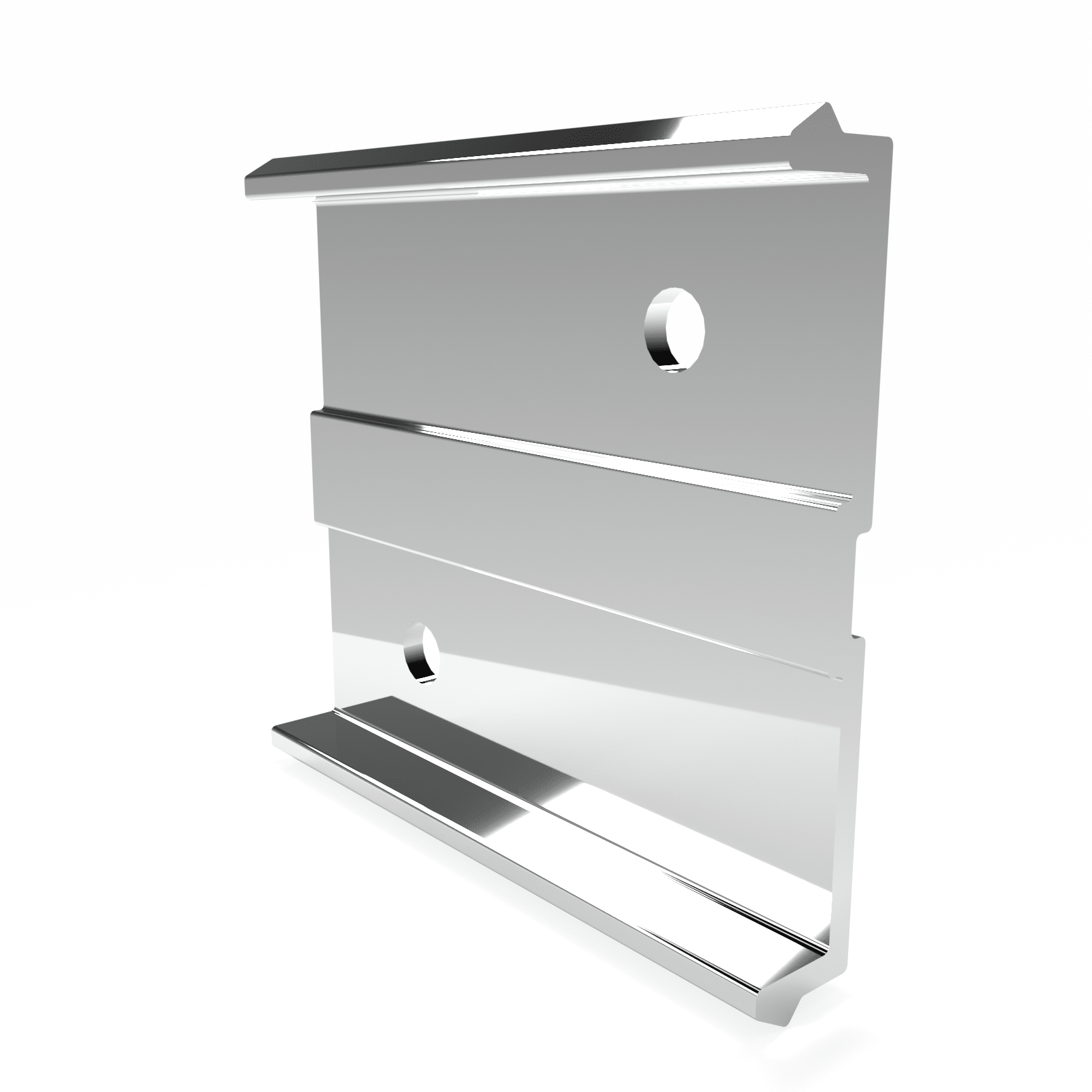

Zero Lift, Snap-Fit Panel Hanging Solution - Panel Rails
Our panel rails come in light-duty (2" MSNAP-PC2 clips) and heavy-duty (continuous MSNAP-PR rails in 72" or 144" lengths). The snap-fit design enables easy, zero lift-off installation, ideal for tight spaces and ceilings.
What's Included
These Zero Lift solutions include an MSNAP Wall Rail and either a Panel Rail or Panel Clips based on light / heavy duty . See below chart for kit specific quantities.
| Kit Option | Wall Rails | Panel Clips | Panel Rails |
|---|---|---|---|
| 6 Foot - Light Duty | 1 | 6 | 0 |
| 6 Foot - Heavy Duty | 1 | 0 | 1 |
| 12 Foot - Light Duty | 1 | 12 | 0 |
| 12 Foot - Heavy Duty | 1 | 0 | 1 |
MSNAP Video
Specifications & Downloads
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Material | 6063-T6 Aluminum |
| Stock Clip Size | 2 Inch (panel only) |
| Stock Continuous Length | 72 Inch, 144 Inch |
| Lift Off | Zero |
| Projection | 3/8 Inch |
| Availability | Same Day Shipping |
MSNAP Installation Guide
Download Technical Drawing
Download DWG Files
(1) Lift-Off: Amount needed to raise the panel over its resting height to mount the panel.
(2) Projection: Distance that the panel sits out from the wall.
