Aluminum Z Clip, High Load Capacity, 2 Inch Stock Clip Size, 3/8 Inch Projection, 3/4 Inch Lift-Off, MFSTR-0375
Z Clips and Rails are sold separately, not in sets
The MFSTR-0375 is the perfect high load capacity Z Clip solution for high strength applications that require the use of a larger bolt where a 3/8 inch projection is desired.
Shipping Pro Tip
Due to package size and handling restrictions, you could save on shipping costs by ordering *4 foot or 6 foot rails vs. 12 foot rails.
*4 foot rails available on select products
Product Description
About MFSTR-0375 Z Clip

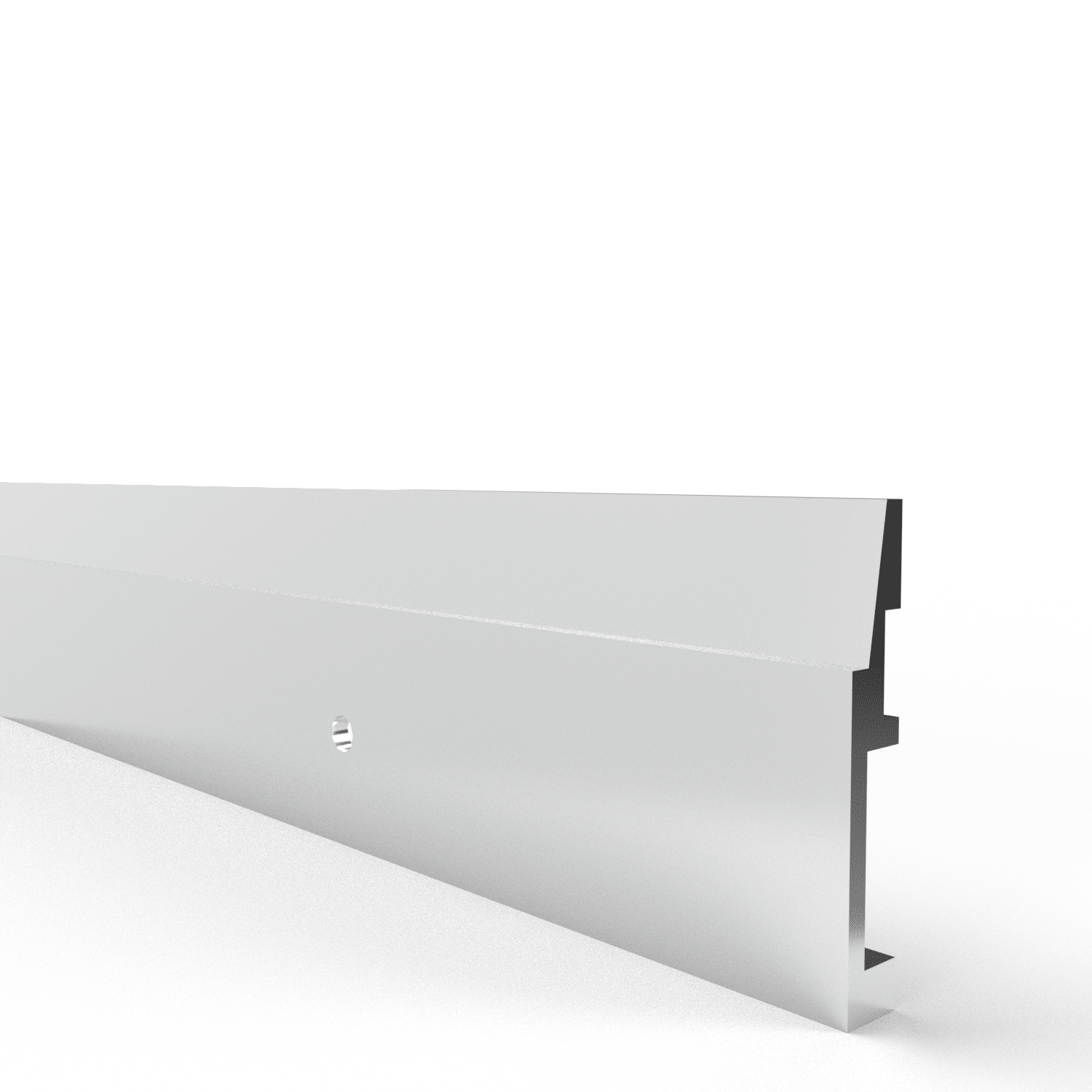

The MFSTR-0375 is the perfect high load capacity Z Clip solution for interior installations with only 3/8 inch clearance above the panel. It is made of aluminum and the Z Clip features a stock clip size length of 2 inches as well as continuous lengths (rails) in 48 inches, 72 inches or 144 inches. This Z Clip also provides 3/8 inch projection and 3/4 inch lift off.
Features of MFSTR-0375 Z Clip
- Stock clips use 1/4 inch holes, custom clips available with up to 3/8 inch holes for larger bolts for heavier duty applications
- Mounts quickly on concrete block or other difficult materials
- 7/8 inch clearance required between the top of the panel and the ceiling
- 6063-T6 Aluminum
Z Clip Installation Options

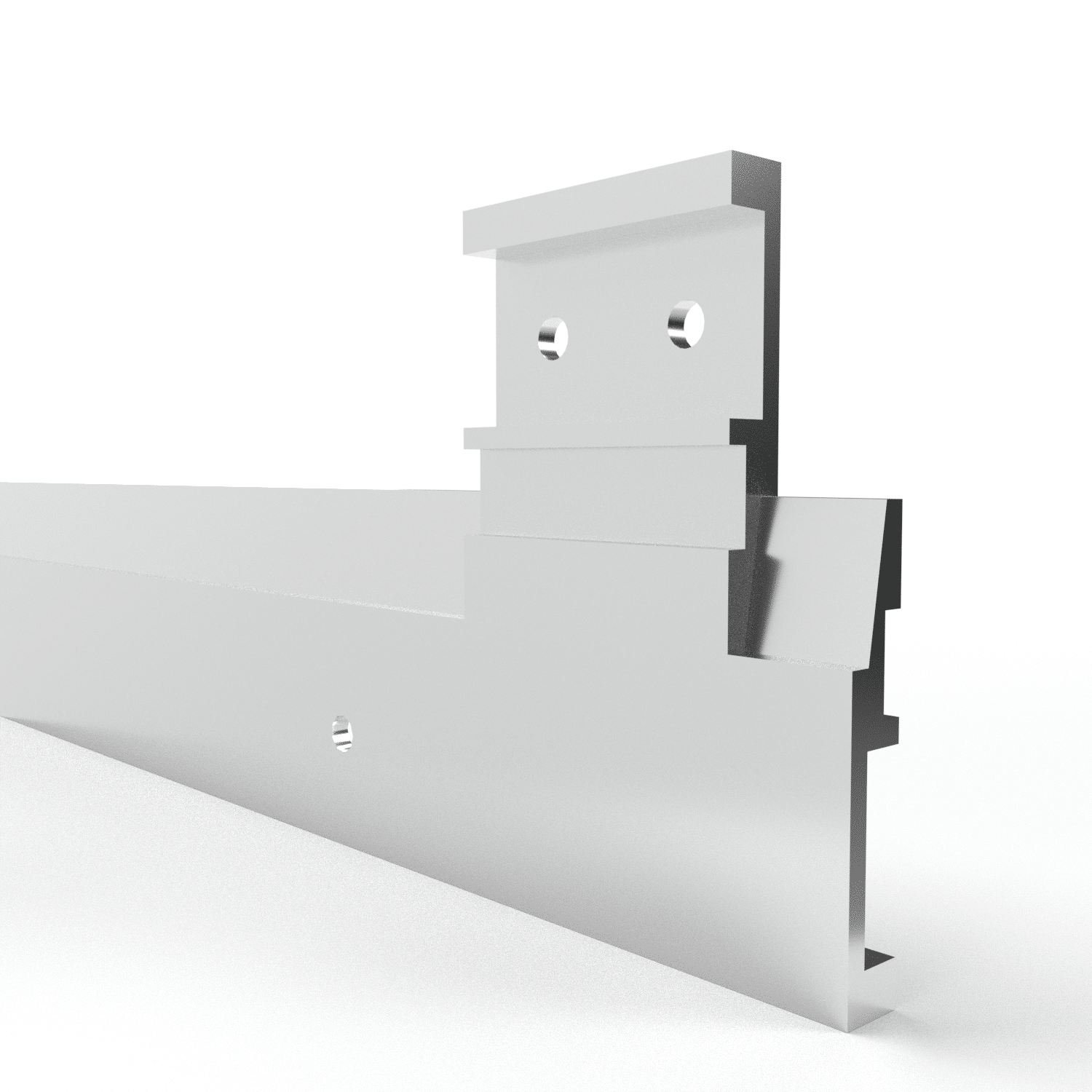

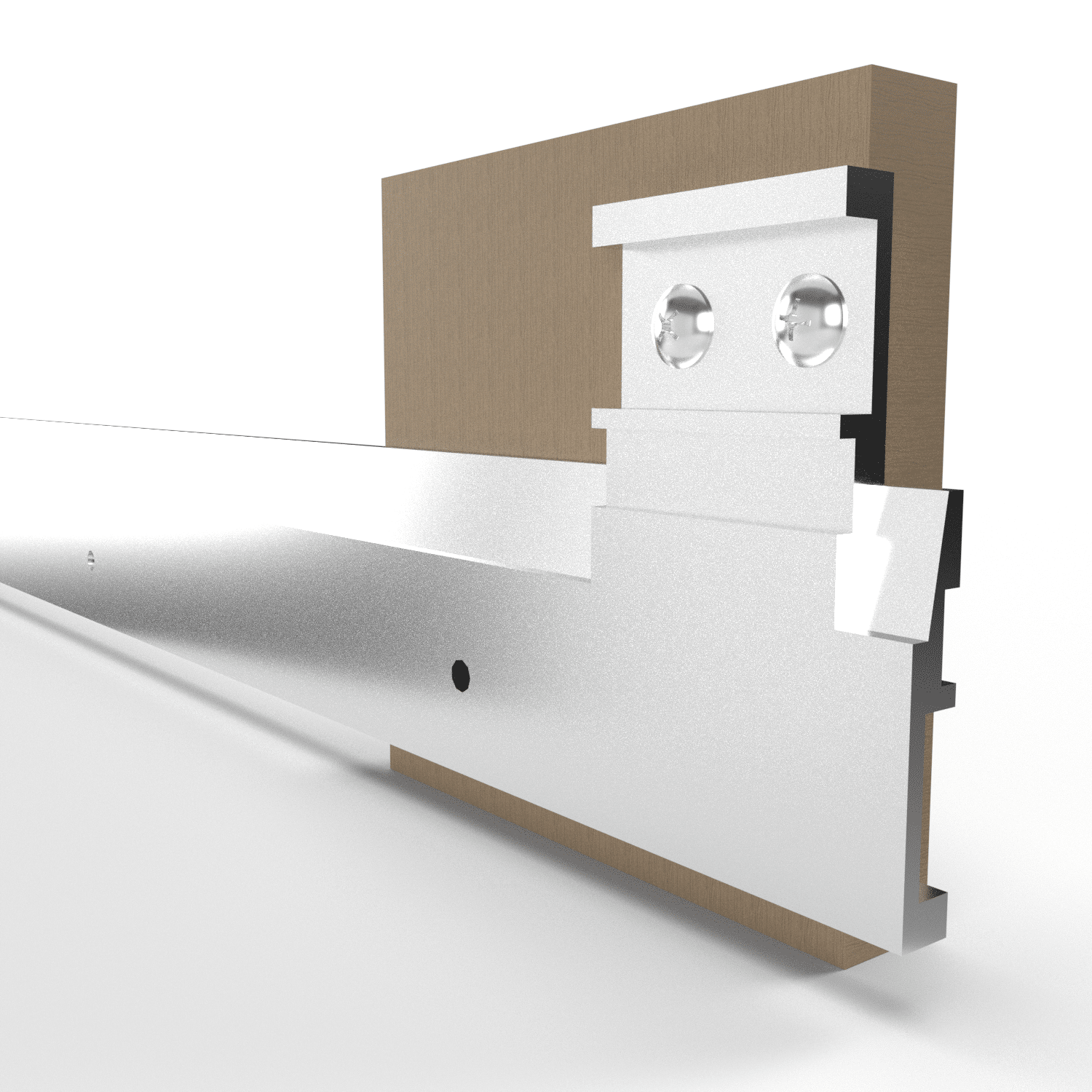

There are several options for installation of this Z Clip and we recommend whichever method works best for your project. Mating options include clip to clip, clip to rail or rail to rail. For this reason, Z Clips are pre-packed but rails are sold separately and individually and NOT as sets.
Custom Fabricated Z Clips
MFSTR-0375 Z Clip Video
Specifications & Downloads
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Material | Aluminum |
| Stock Clip Size | 2 Inch |
| Stock Continuous Length | 48 Inch, 72 Inch, 144 Inch |
| Custom Lengths Available | Any |
| Lift Off | 3/4 Inch |
| Projection | 3/8 Inch |
| Availability | Same Day Shipping |
Download Technical Drawing
Download DWG Files
(1) Lift-Off: Amount needed to raise the panel over its resting height to mount the panel.
(2) Projection: Distance that the panel sits out from the wall.
Photo Gallery
