Adhesive-Backed Z Clip – Dual 3M™ VHB™ Tape, Peel & Stick, 3/8″ Lift-Off, 0.293″ Projection, MFTAPE
Z Clips and Rails are sold separately, not in sets
The MFTAPE dual adhesive-backed Z Clip is the perfect solution for Installing Glass, ACM or Phenolic Panels for glass, where panel doesn’t allow for attachment with a screw.
Shipping Pro Tip
Due to package size and handling restrictions, you could save on shipping costs by ordering *4 foot or 6 foot rails vs. 12 foot rails.
*4 foot rails available on select products
Product Description
About MFTAPE Z Clip
Now Available: 6-inch wide standard MFTAPE Clip for projects requiring greater strength and load capacity.

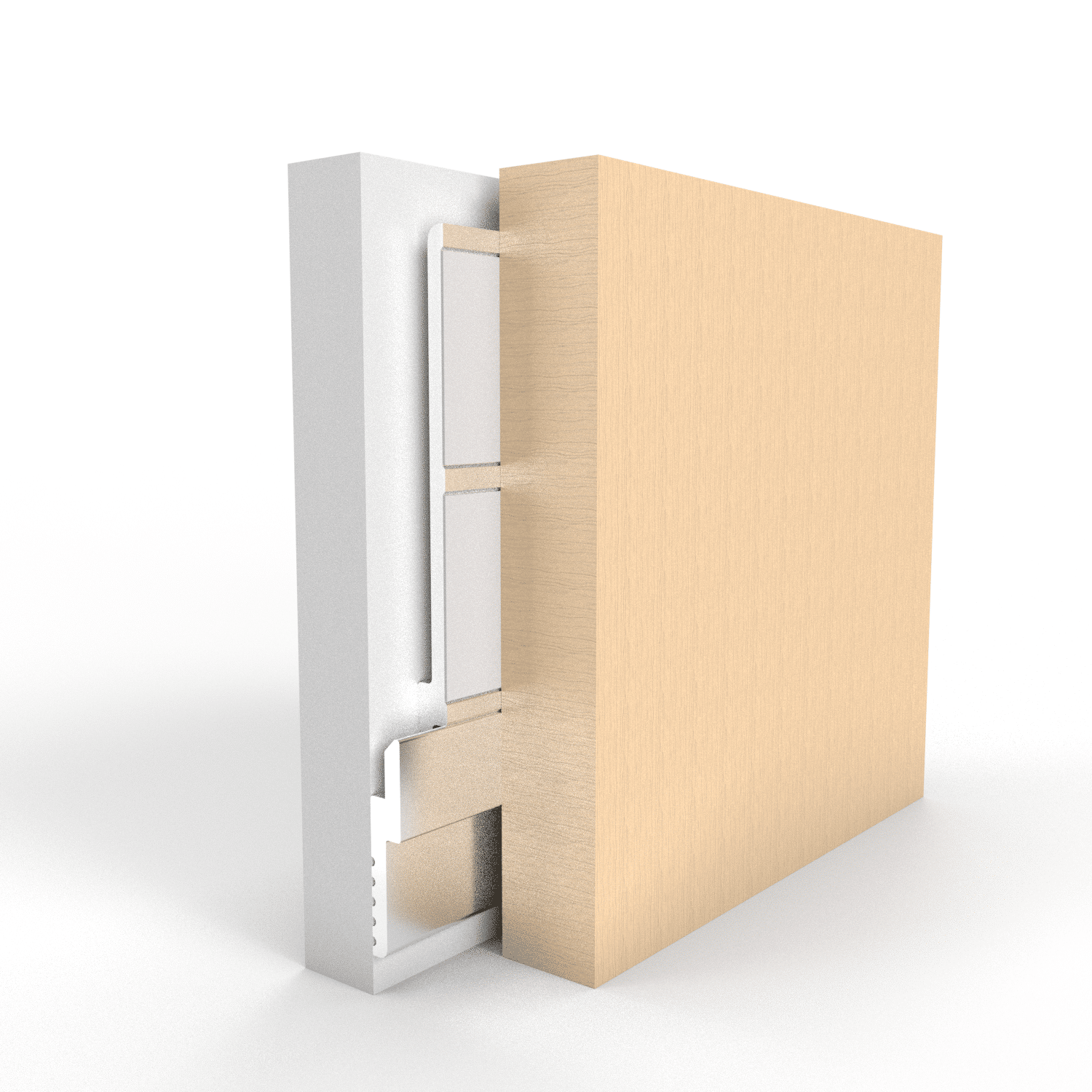

The MFTAPE Z Clip is a high-strength, adhesive-backed mounting system featuring dual strips of 3M™ VHB™ Tape. It is designed for installing glass, ACM, aluminum, mirrors, back-painted glass or phenolic panels where screw attachment is not possible, and is particularly well-suited for interior applications with just ½-inch clearance above the panel.
Made from 6063-T6 aluminum for exceptional durability, the MFTAPE is offered in 2-inch and 6-inch standard clip lengths, as well as continuous rail lengths of 48 inches, 72 inches, and 144 inches—available with or without 3M adhesive tape. Each clip provides a 0.293-inch projection and ⅜-inch lift-off for precise, low-profile installations.
Key Features of MFTAPE Z Clip
- Clearance requirement: ½ inch above panel
- Material: 6063-T6 aluminum

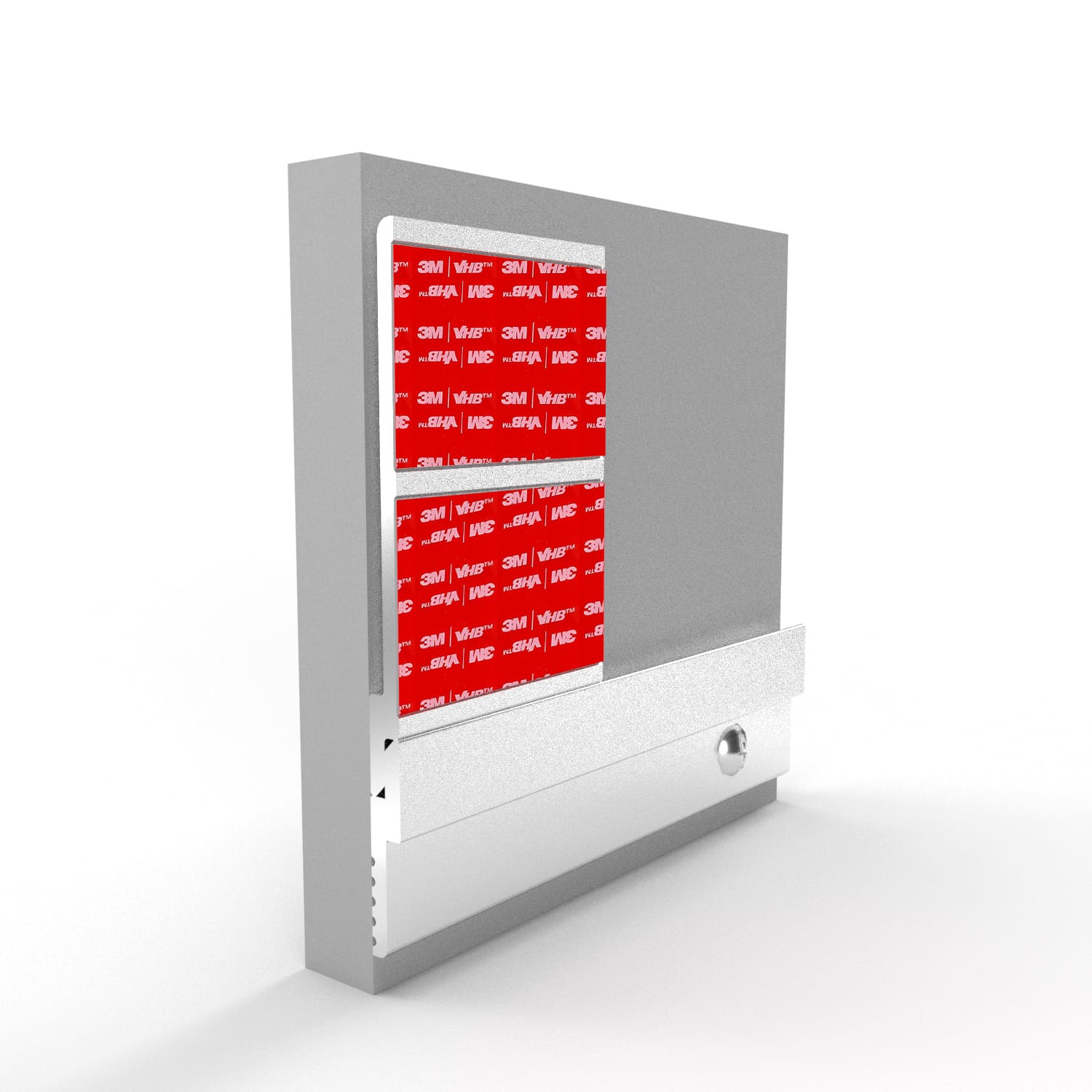

- Adhesive: Two pre-applied 3M™ VHB™ tape strips for peel-and-stick use
- Panel compatibility: Phenolic, ACM, aluminum, and back-painted glass
- Load capacity: 7.5 lb/ft shear strength (5x safety factor)
- Preparation: 3M technical guidance available for optimal adhesion
- Application: Suitable for interior installations (per 3M Design Guide)

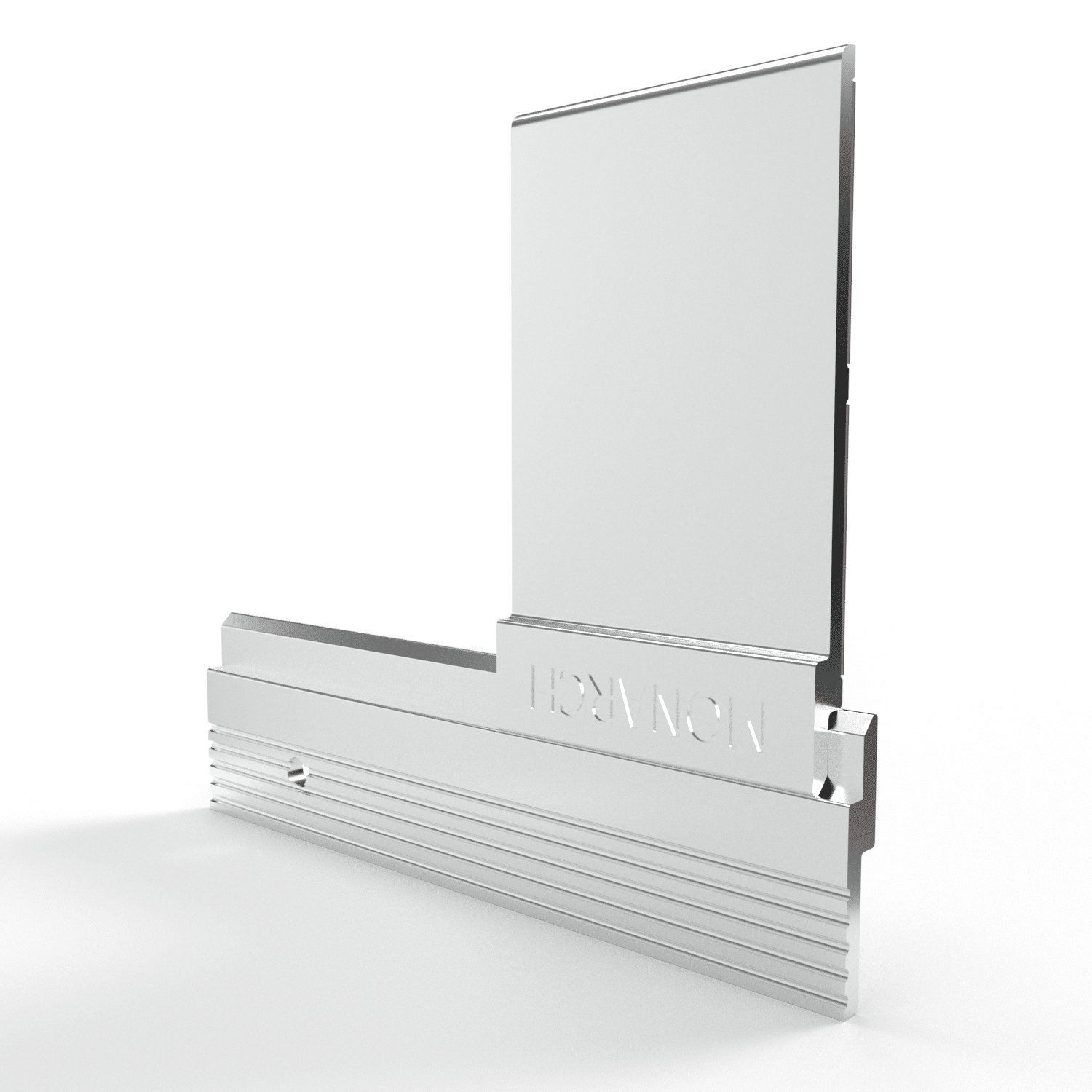

- Rail pairing: Designed for use with MF375 Z Clip & rail

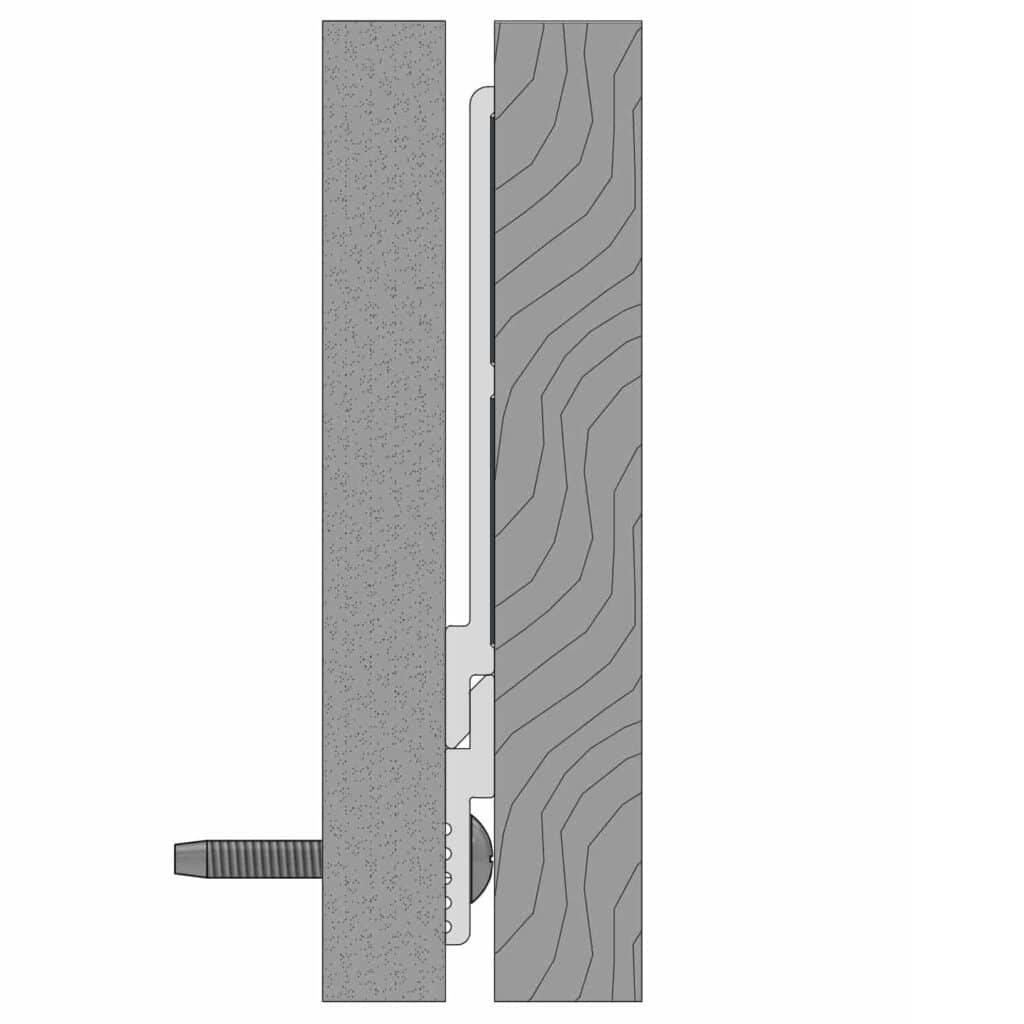

Z Clip Installation & Compatibility
- Designed for: MF375 rail (sold separately in multiple lengths)
- Connection types: Clip-to-clip, clip-to-rail, rail-to-rail
- Custom lengths: Available upon request to meet specific project needs
- Packaging: Z Clips are pre-packed; rails sold separately, individually, not in sets
Best Uses For The MFTAPE Z Clips
- Glass panel installations without screw fastening
- High-strength mounting needs (use 6″ clip for added load capacity)
- Interior applications requiring a clean, hidden fastening system
- Mounting ACM or phenolic panels where drilling is not possible
- Mirrors and back-painted glass
- Retrofit projects where surface integrity must be preserved
- Mounting decorative wall panels or signage in commercial interiors
- Temporary or semi-permanent displays where removability is desired
Ordering & Custom Options For Z Clips
- Stock clips: Same/next business day shipping (online or phone
- Custom lengths: Available upon request — Request a Quote
- Samples: Available for evaluation prior to purchase — Request a Sample
Frequently Asked Questions
With Or Without 3M Tape
Rails can also be purchased without the 3M tape for use with your preferred vendor of glazing tape
Installation Video
Specifications & Downloads
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Material | 6063-T6 Aluminum |
| Stock Adhesive | 3M VHB Tape |
| Stock Clip Size | 2 Inch, 6 Inch |

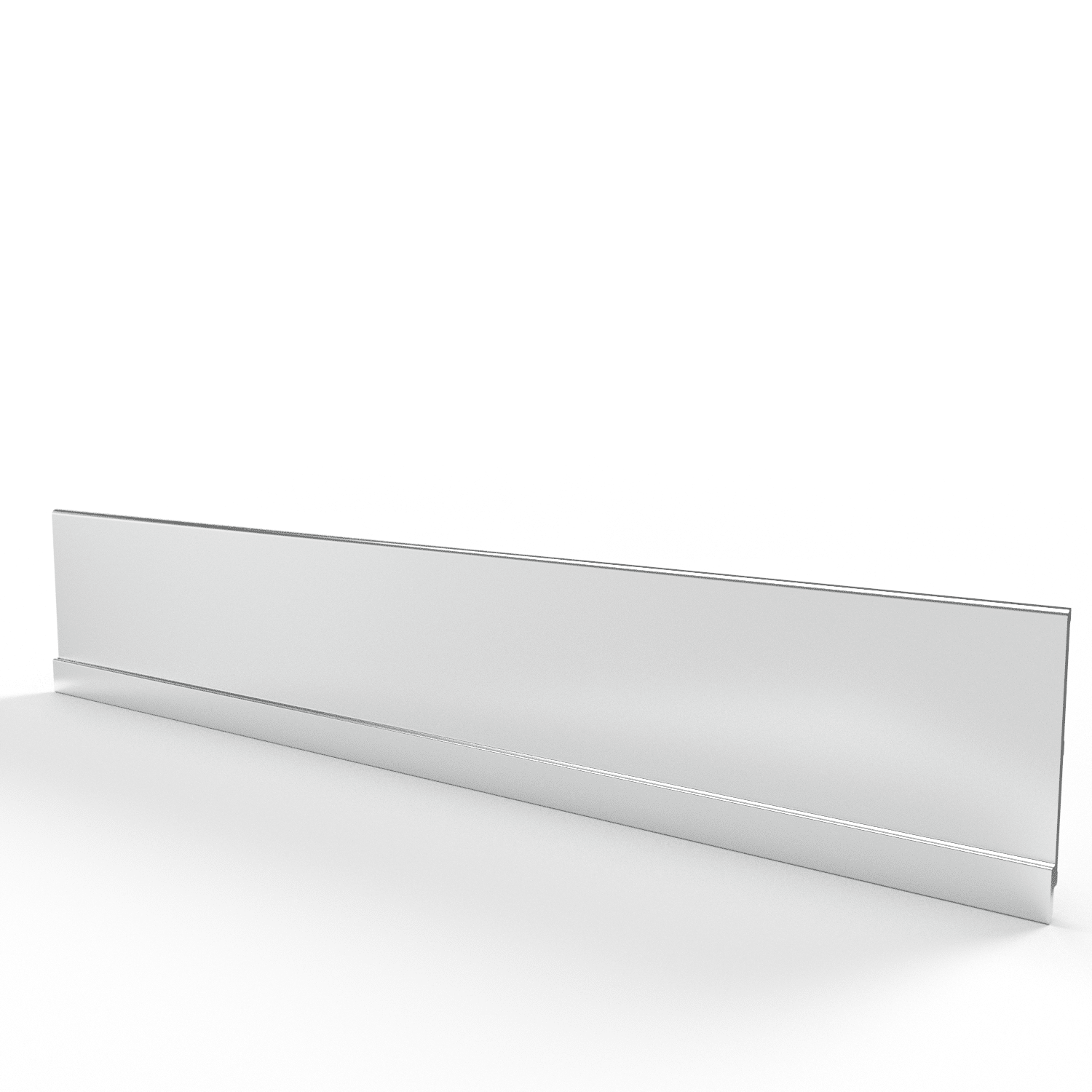

| Stock Continuous Length | 48 Inch, 72 Inch, 144 Inch |
| Custom Lengths Available | Any |
| Lift Off | 3/8 Inch |
| Projection | 0.293 Inch |
| Clearance Required | 1/2 Inch |
| Availability | Same Day Shipping |
| Options | Single 2 Inch Clip, Single 6 Inch Clip, 4 Foot Rail – With Tape, 4 Foot Rail – Without Tape, 6 Foot Rail – With Tape, 6 Foot Rail – Without Tape, 12 Foot Rail – With Tape, 12 Foot Rail – Without Tape |

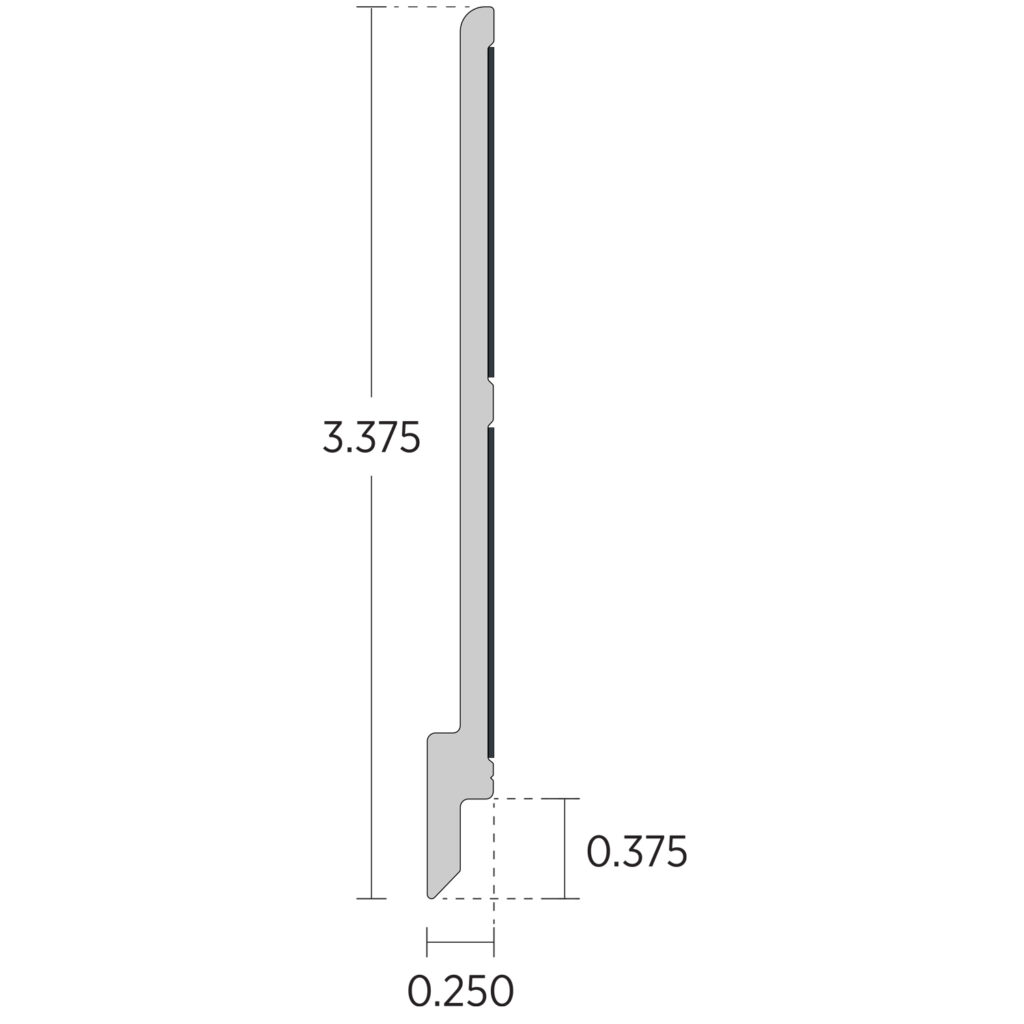

Download Technical Drawing
Download DWG Files
(1) Lift-Off: Amount needed to raise the panel over its resting height to mount the panel.

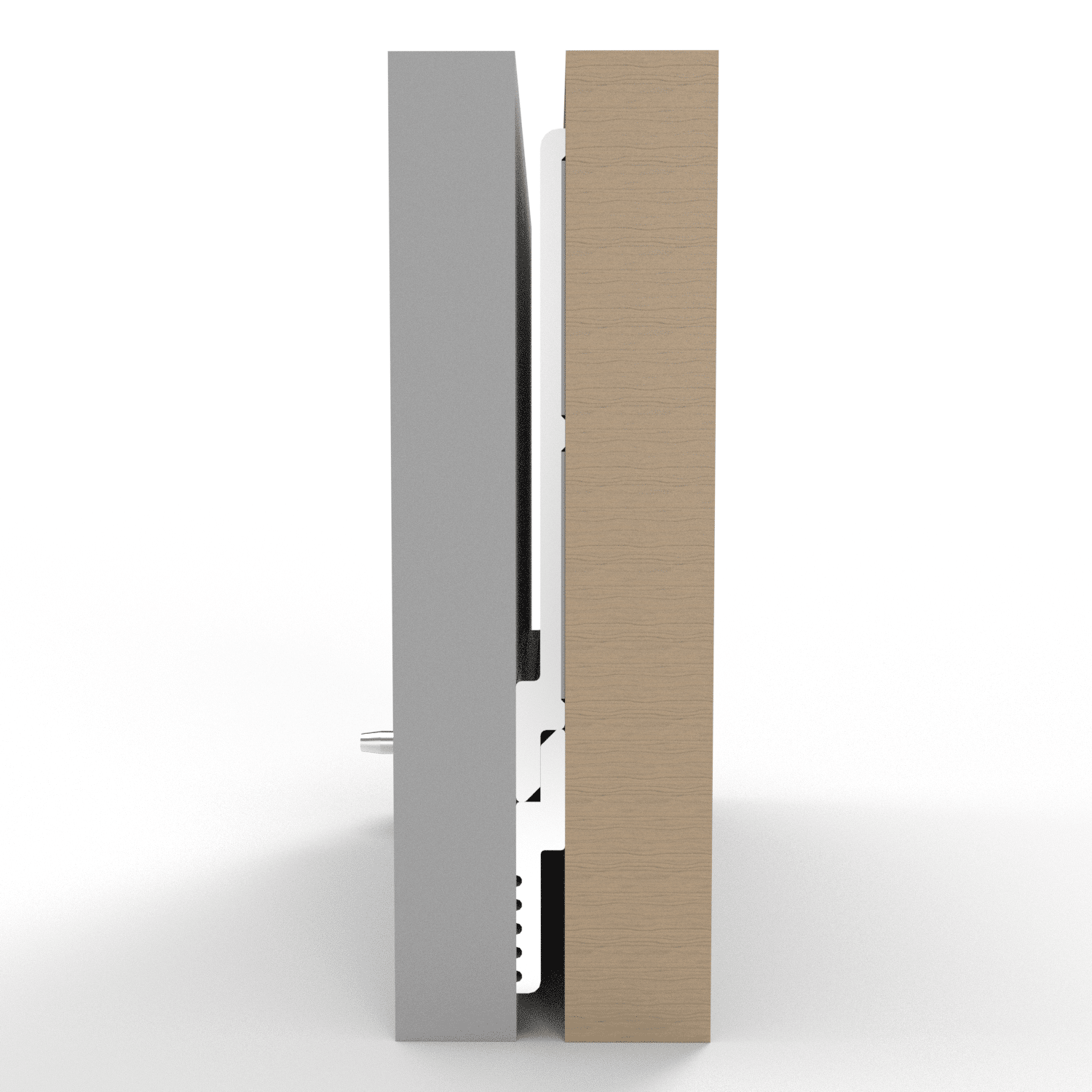

(2) Projection: Distance that the panel sits out from the wall.
Photo Gallery

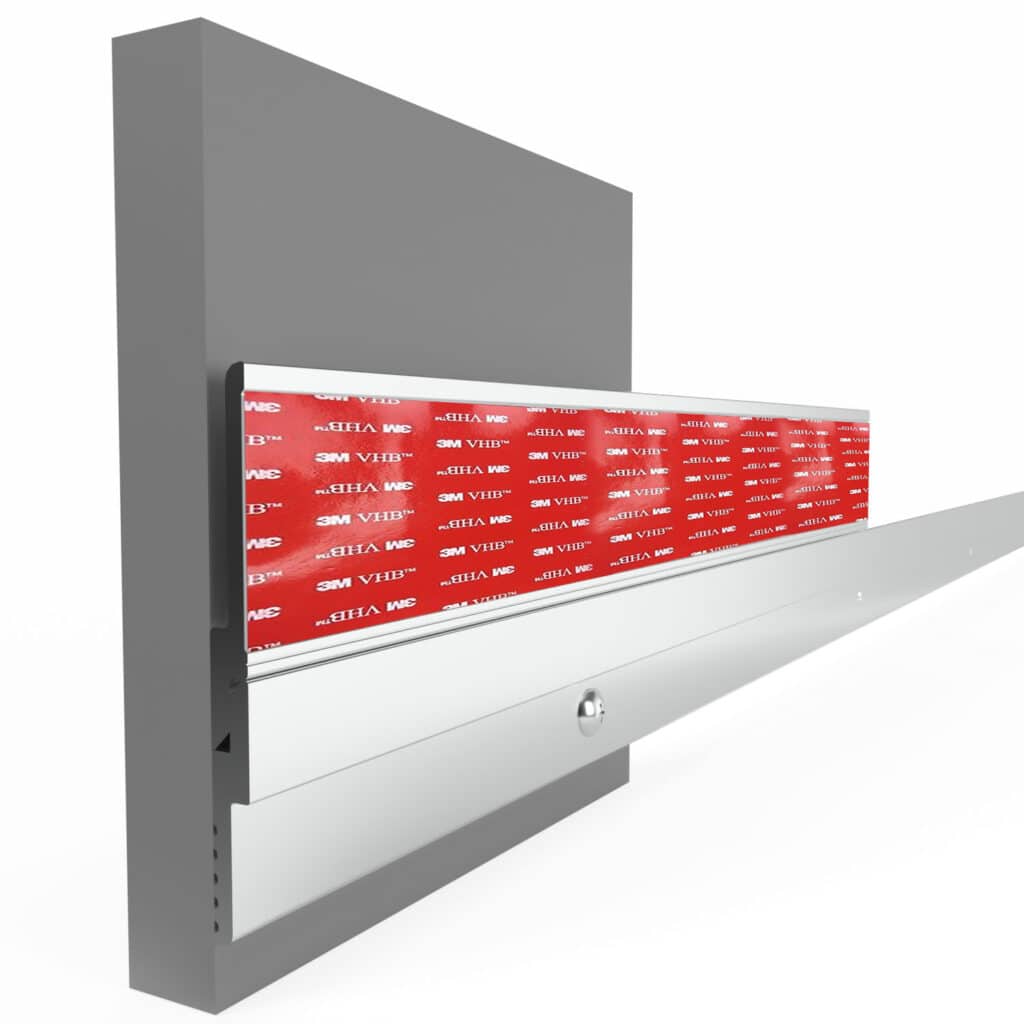

Single Adhesive-Backed Z Clips, Peel and Stick Application
The MFTAPE-S single adhesive-backed Z Clip is the perfect solution for Installing Glass, ACM or Phenolic Panels for glass, where panel doesn’t allow for attachment with a screw. The single adhesive is perfect for smaller installations and each 1 Ft of Clip is rated for 3.75 pounds of shear strength using a 5x safety factor.
