#12 Panel & Wall Mounting Screws for High Load Capacity Z Clips & Rails (Pan Head, Steel, Zinc Plated)

MODEL: Screws-12

Z Clip panel and wall screws are engineered for secure fastening in high load capacity panel installations using heavy duty Z Clip and rail systems. Featuring a clean pan head profile and durable zinc-plated steel construction, these fasteners provide increased holding strength and dependable performance for demanding interior applications. Panel screws are available in 1/2″ and 3/4″ lengths, while wall screws are offered in 1 1/2″ lengths to accommodate a range of panel thicknesses and embedment requirements.

Select Screw Length

Select Options

Clear

Product Description

About #12 Z Clip Panel & Wall Screws

The Z Clip pan head, steel, zinc plated panel screws are designed for reliable fastening of panels when installing high load capacity Z Clip and rail systems. Available in multiple lengths, these pan head screws provide flexibility across a range of panel thicknesses and installation conditions, making them a practical choice for architectural panel applications where increased holding strength and secure attachment are required.

Manufactured from steel with a zinc plated finish, these screws offer dependable strength and general corrosion resistance for interior use. Their pan head design provides a clean, low-profile fastening surface while maintaining a secure hold across common panel materials.

These screws are recommended for use with our high load capacity Z Clip and rail systems, including MFSTR-0375, MFSTR-050, and MFSTR-075 configurations.

Z Clips and rails are sold separately and are not packaged with screws.

Key Features of Z Clip Panel Screws

Material: Steel
Finish: Zinc plated

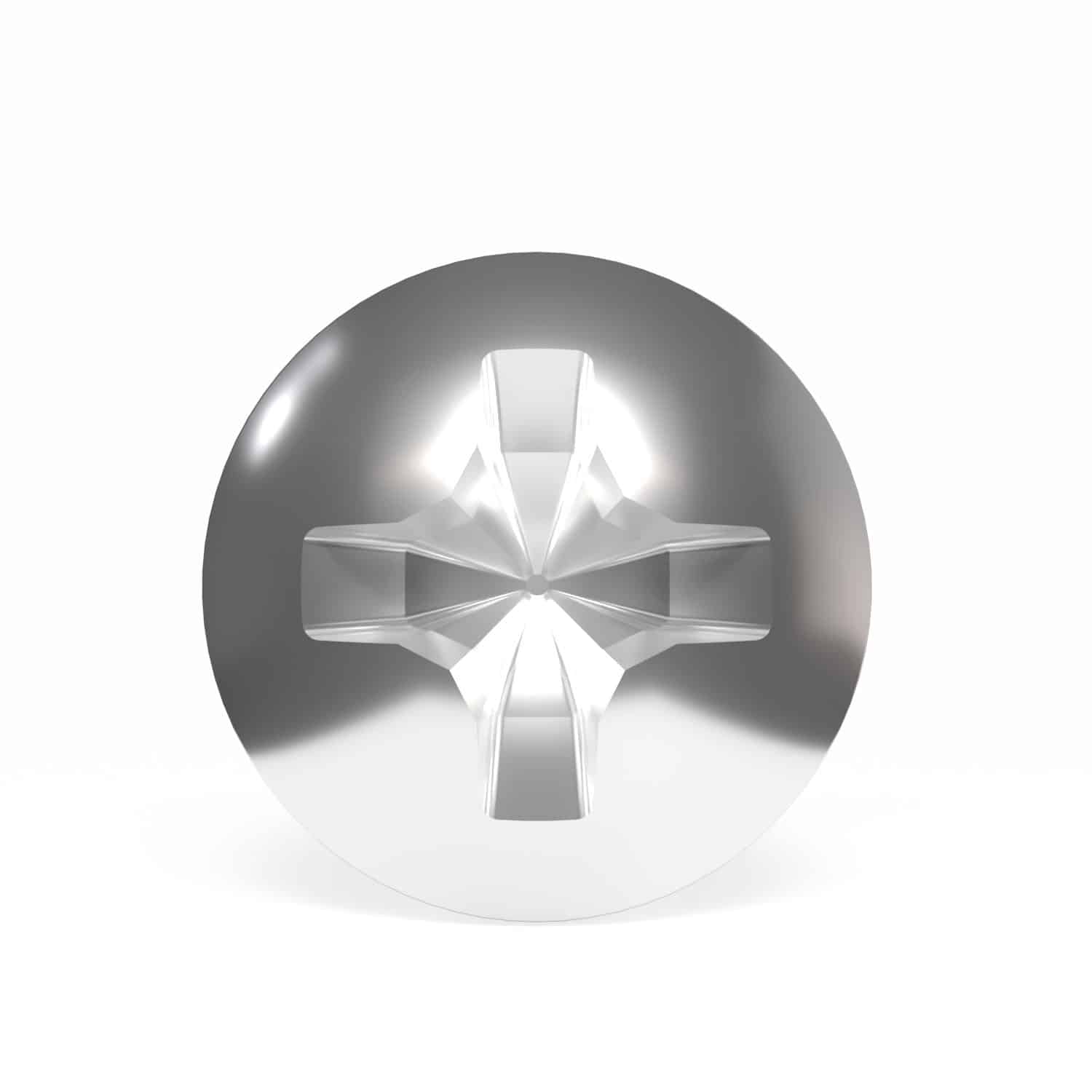

Head Style: Pan head
Use: Interior and general-purpose applications
Compatibility: Recommended for use with high load capacity Z Clip systems
Availability: Stock items available for quick shipment

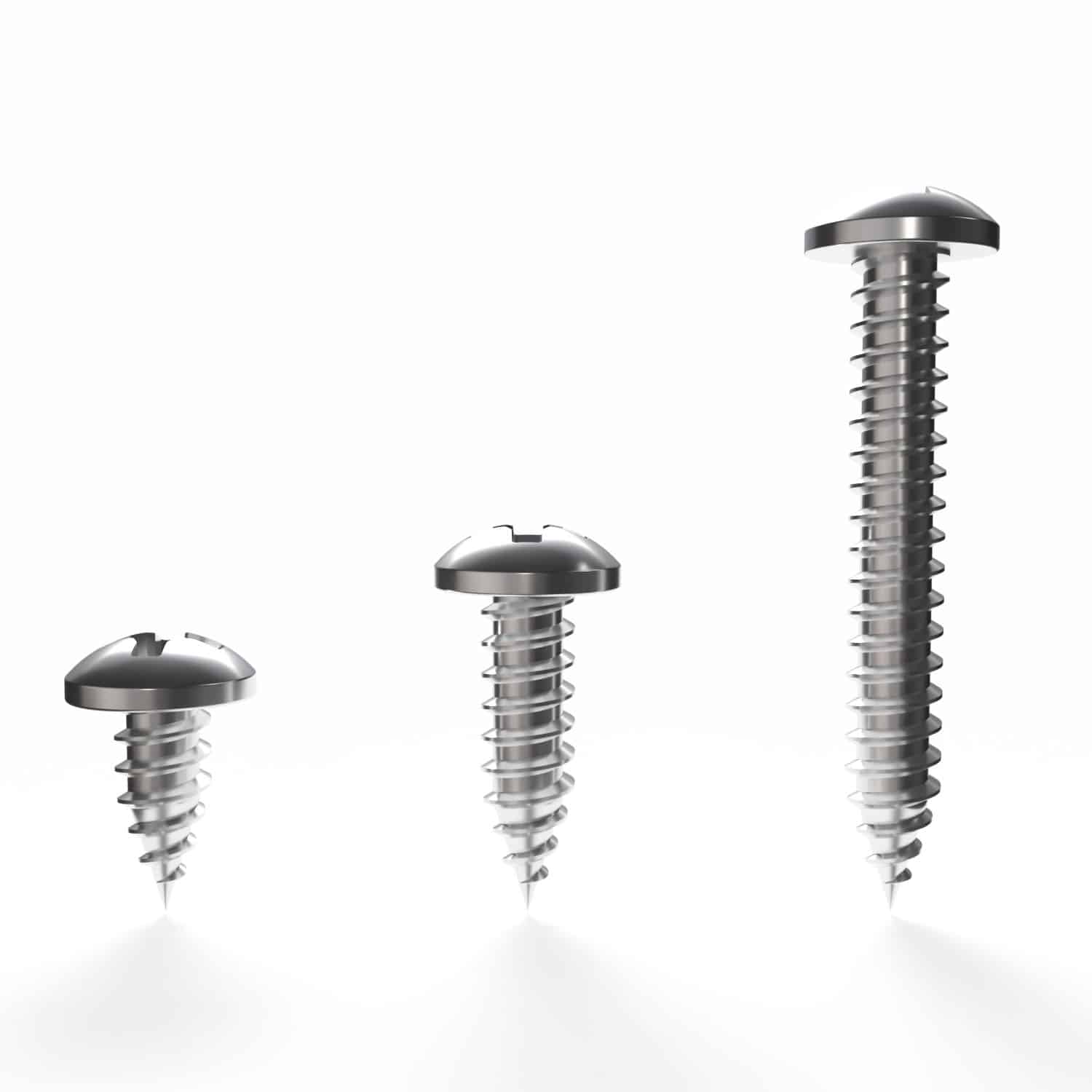

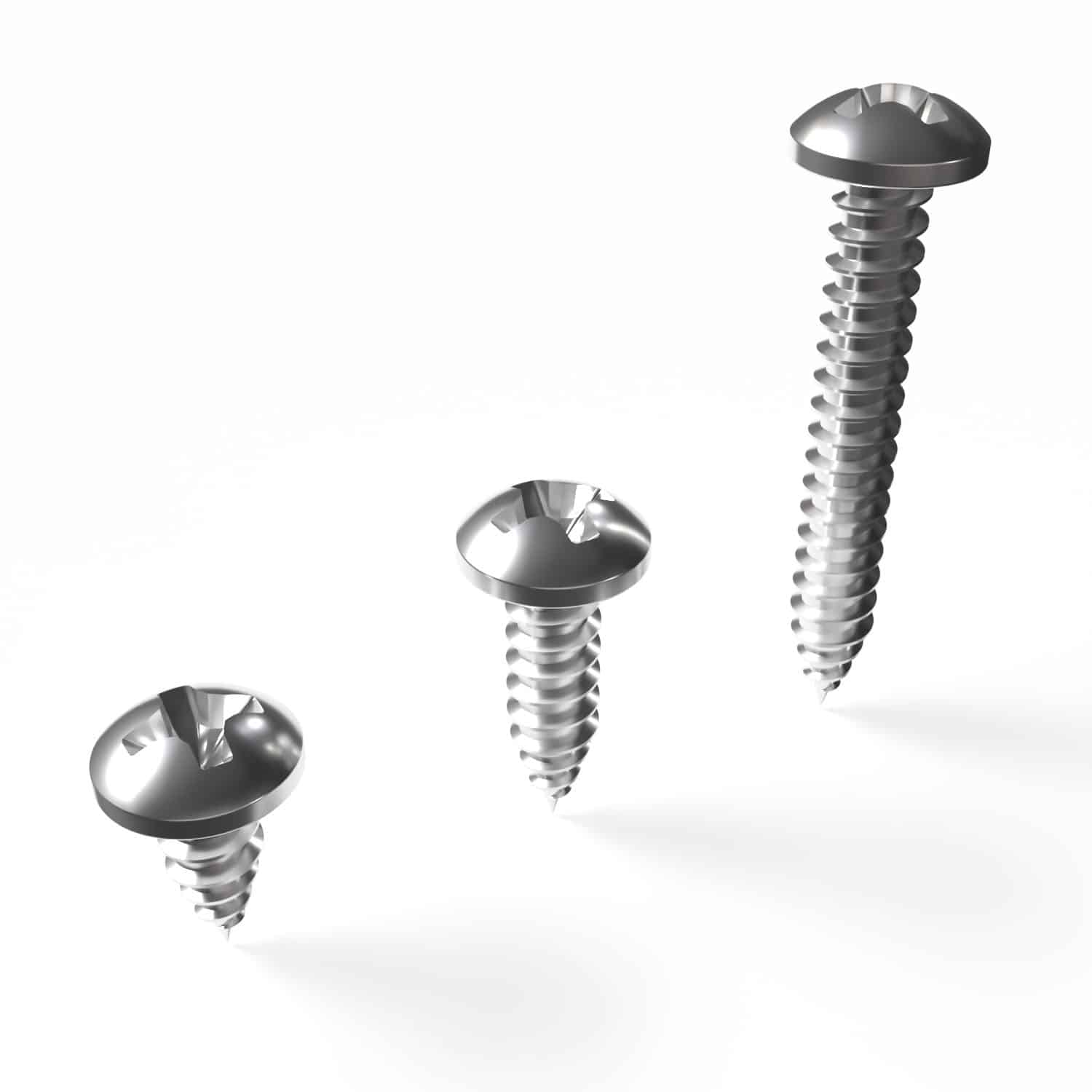

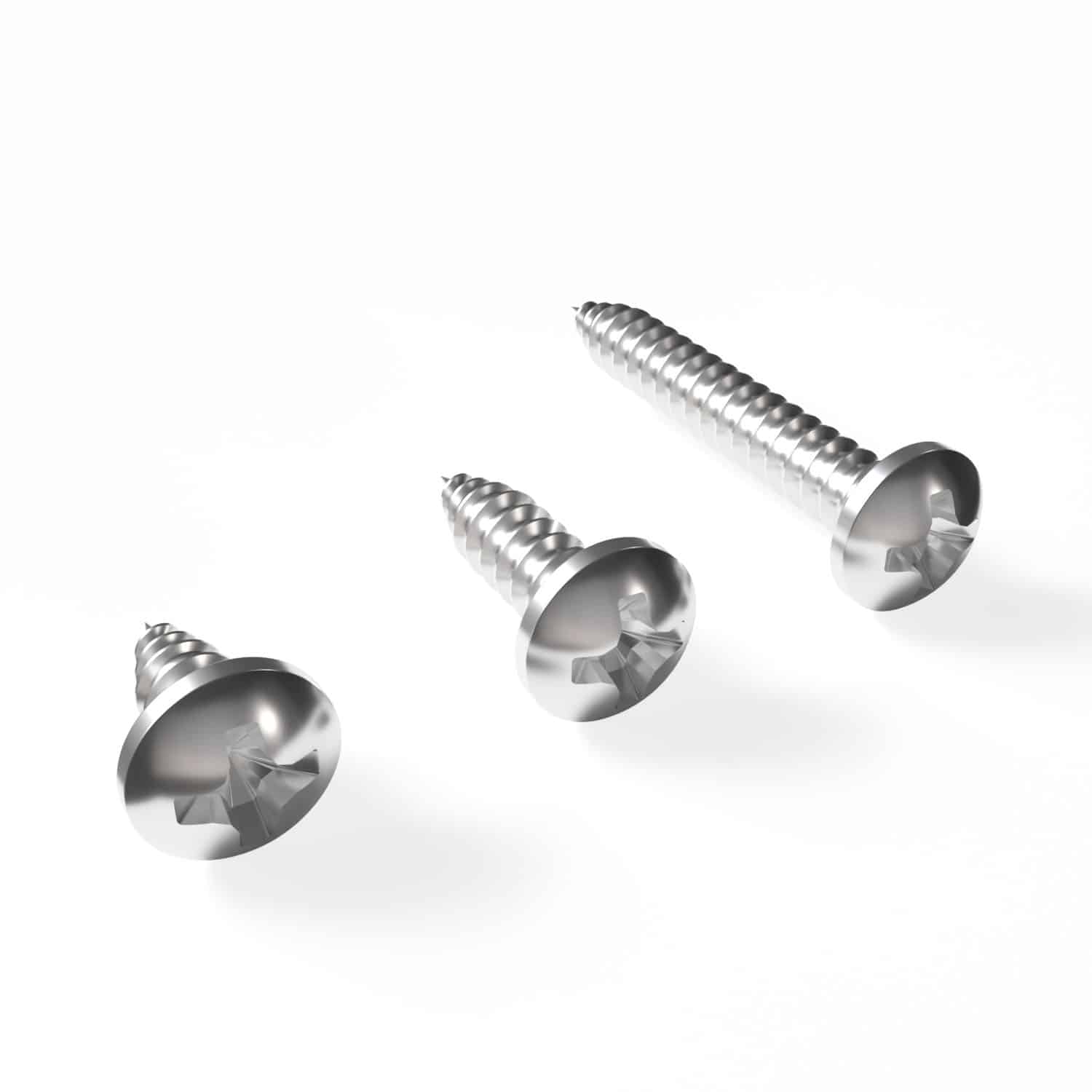

Available Lengths for Panel Applications

Two standard screw lengths are available to accommodate different panel thicknesses and installation requirements:

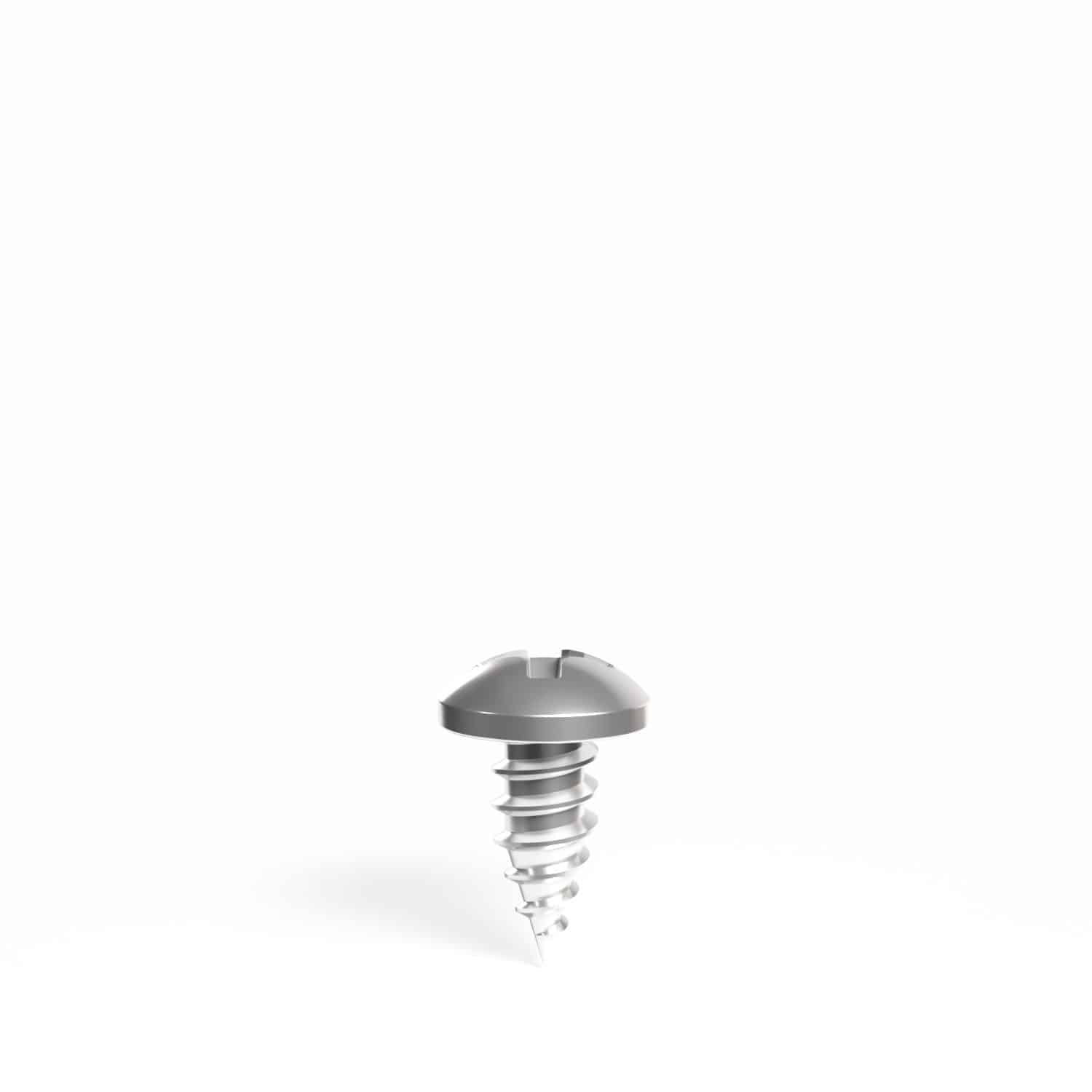

#12 x 1/2″ panel screw
Ideal for thinner panels where minimal embedment is required.

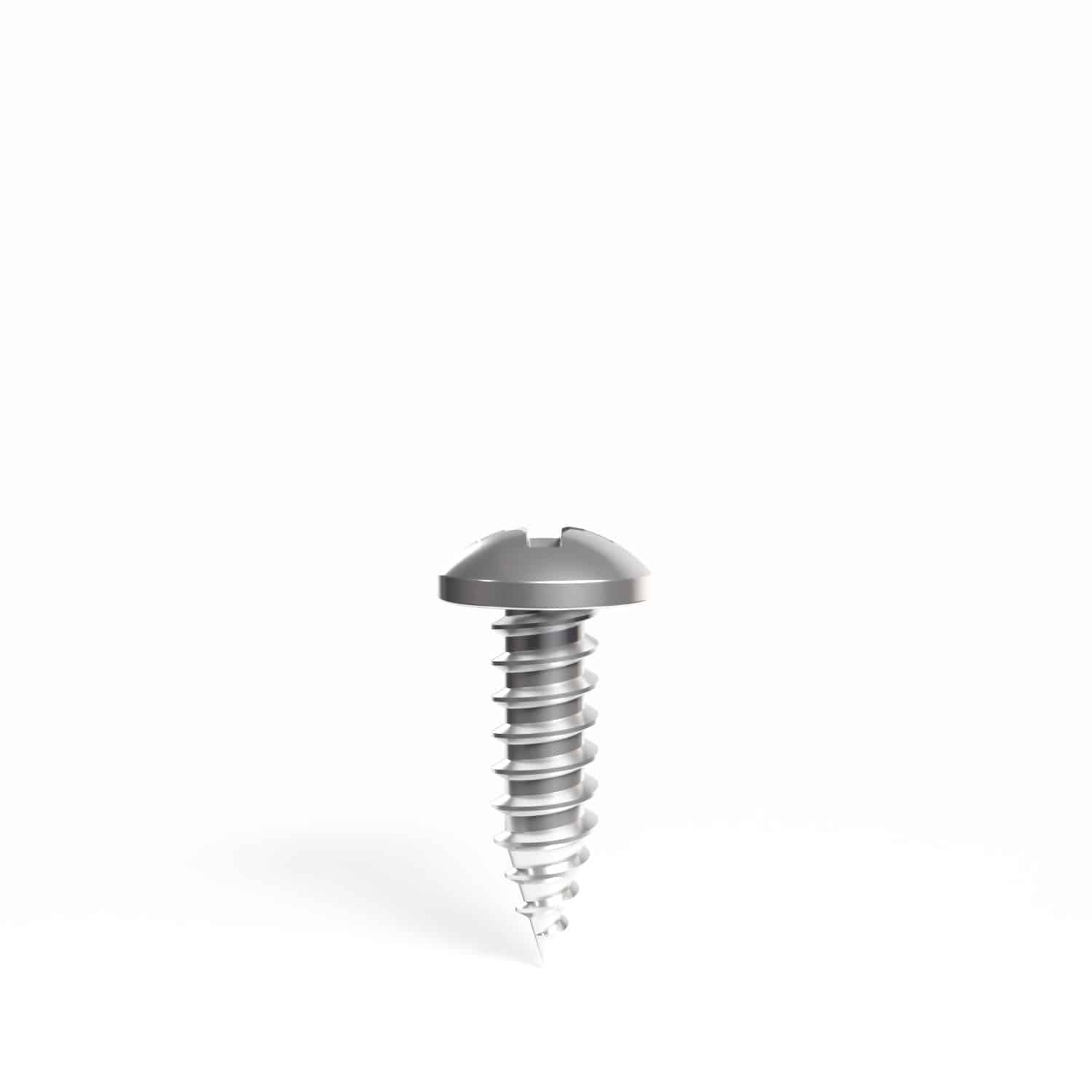

#12 x 3/4″ panel screw
Best suited for thicker panels where deeper embedment improves fastening strength.

Selecting the appropriate screw length helps ensure proper embedment and secure panel attachment when used with high load capacity Z Clip systems.

Available Length for Wall Applications

Wall screws are designed to provide secure anchoring into wall substrates when installing high load capacity Z Clip and rail systems. The standard length is optimized to ensure proper embedment and reliable fastening performance:

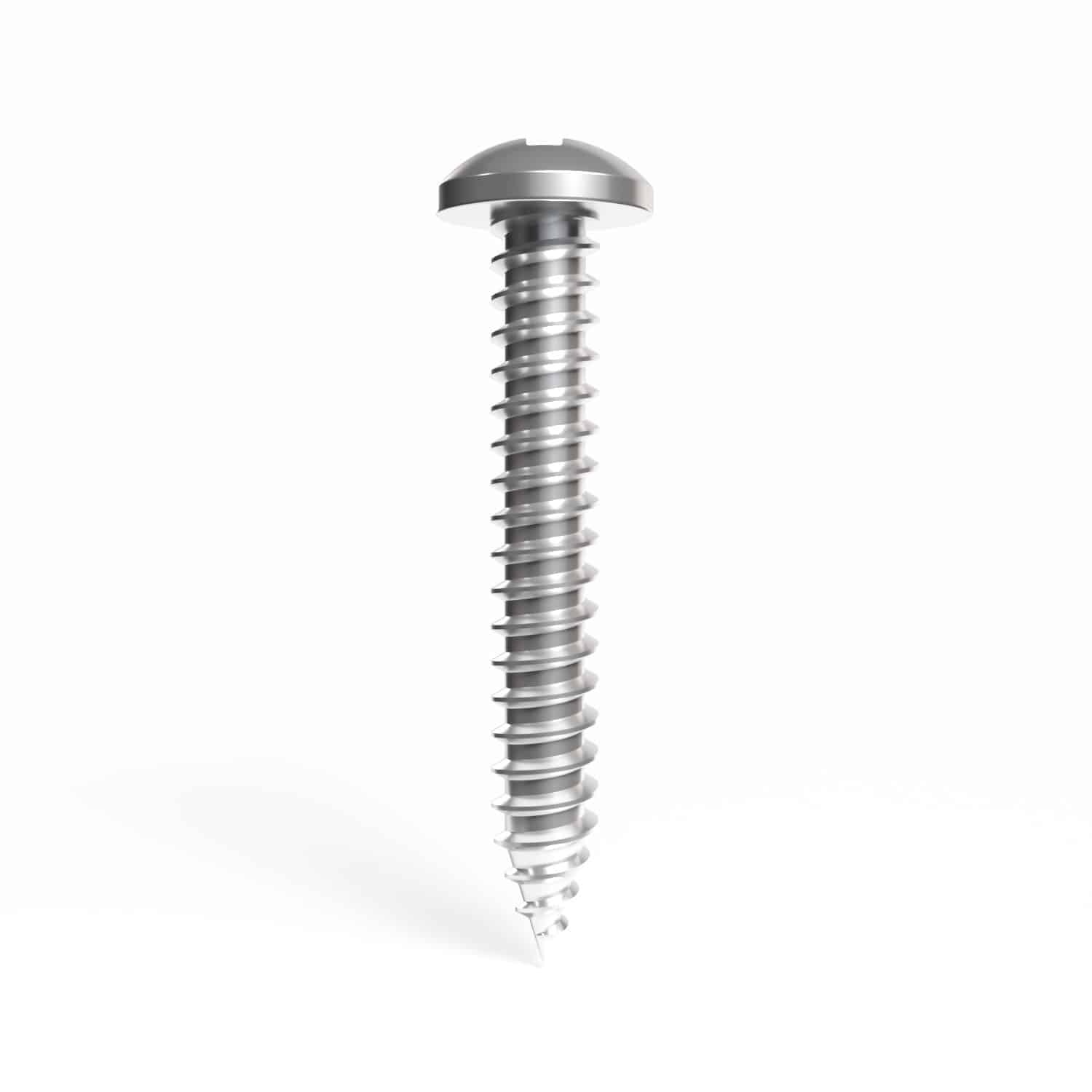

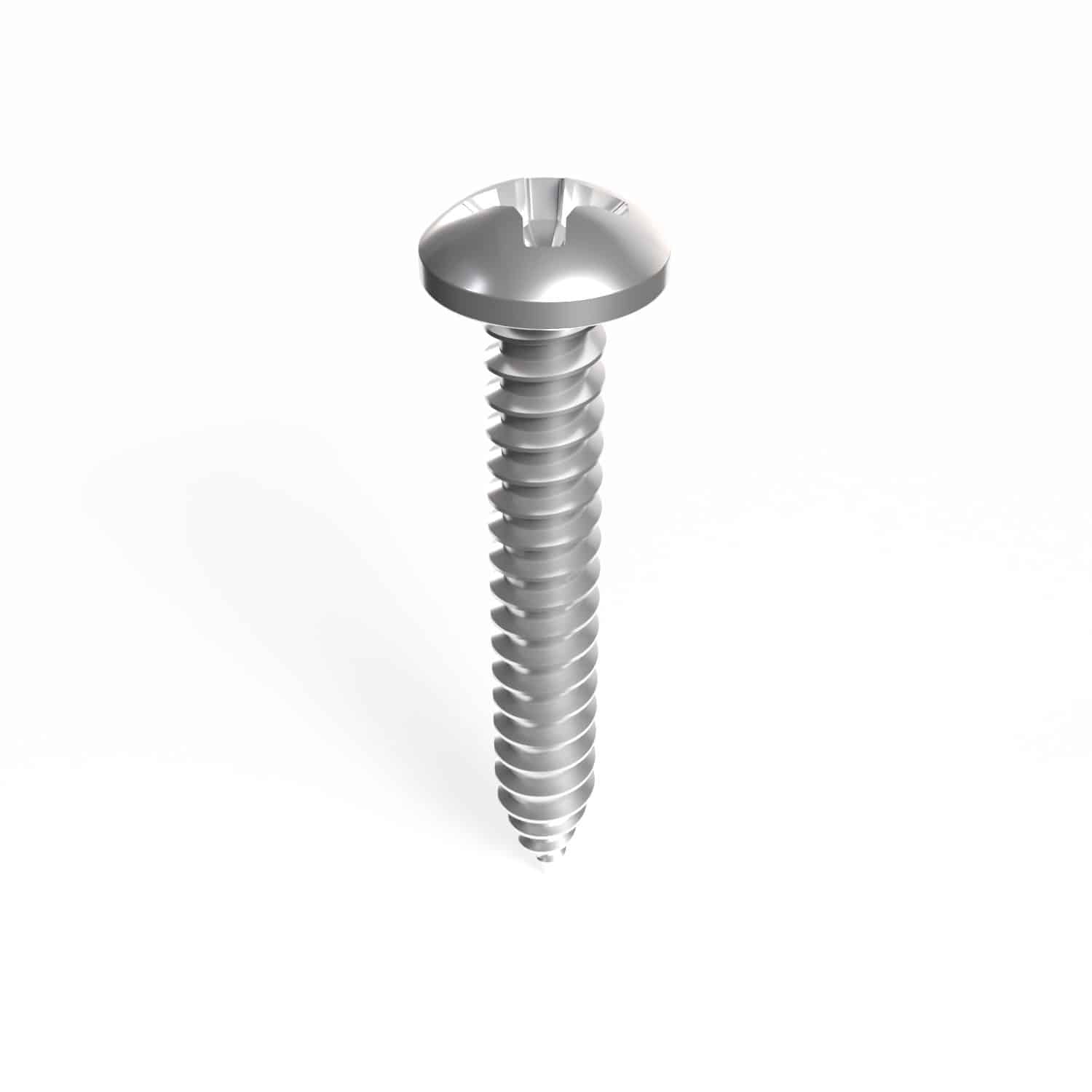

#12 x 1 1/2″ wall screw
Ideal for fastening Z Clips and rails into wall substrates such as wood studs or suitable backing, providing sufficient depth for strong, secure attachment.

The 1 1/2″ length is engineered to deliver consistent embedment and dependable holding strength across typical wall installation conditions.

Z Clip Compatibility

These panel screws are suitable for use with the following high load capacity Z Clip systems:

MFSTR-0375: 3/8 inch projection, 3/4 inch lift-off
MFSTR-050: 1/2 inch projection, 7/16 inch lift-off
MFSTR-075: 3/4 inch projection, 5/8 inch lift-off

They can be used in clip-to-panel fastening applications across a variety of interior panel systems.

Installation & Application

Z Clip Panel Screws are intended for use in common interior panel installations. They can be used across a range of materials depending on project requirements, including:

Wood substrates
Other lightweight architectural panels

Proper screw length selection should be based on panel thickness and desired embedment to ensure a secure and stable installation.

Our #12 screws can be used with most Monarch products with 1/4” hole diameters.

Box Quantities

Panel screws are available in the following box quantities to support both small and large-scale projects:

Panel Screws

Box of 100
Box of 250
Box of 500
Box of 1000

Wall Screws

Box of 50
Box of 100
Box of 250
Box of 500
Box of 1000

Frequently Asked Questions

What’s the difference between panel screws and wall screws?

Panel screws are used to attach Z Clips to the back of panels, while wall screws are used to fasten clips or rails to the wall substrate.

What is the difference between #8 and #12 Z Clip screws?

#12 screws are designed for higher load capacity Z Clip and rail systems that require increased holding strength and compatibility with larger fastener hole diameters. #8 screws are commonly used with standard Z Clip systems, while #12 screws are recommended for heavier-duty applications and most Monarch products with 1/4” hole diameters.

What screw length should I use for my panel?

The correct length depends on your panel thickness and how much embedment is required. As a general guideline, thinner panels use 1/2 inch screws, while thicker panels may require 3/4 inch screws for better engagement.

Are these screws designed specifically for high load capacity Z Clips?

These are general-purpose panel screws that are recommended for use with high load capacity Z Clip and rail systems, but they are not proprietary or system-specific fasteners.

Can these screws be used for exterior applications?

These screws are intended for interior and general-purpose use. For exterior applications, a different material or coating may be required depending on environmental conditions.

What materials can these screws be used with?

They can be used with a variety of panel types including wood, composite materials, and aluminum panels, depending on the installation method and substrate.

Are Z Clips and rails included with the screws?

No, Z Clips and rails are sold separately and are not included with screw purchases. The only Z Clip products furnished with screws are our kits.

Specifications & Downloads

Weight	N/A
Dimensions	N/A
Screw Type	Pan Head Screw, Sheet Metal Pan Head Screw
Screw Size	#12
Screw Length	1/2 Inch, 3/4 Inch, 1 1/2 Inch
Material	Steel
Finish	Zinc Plated
Options	50 Pc. Box, 100 Pc. Box, 250 Pc. Box, 500 Pc. Box, 1,000 Pc. Box
Availability	Same Day Shipping
