Trespa Pura NFC

Trespa Pura NFC Cladding, Horizontal & Vertical Install System

Our system simplifies the installation of Trespa Pura NFC panels by eliminating the need for 1x wood furring strips and EPDM strips that are common with traditional installation systems.

By removing these steps, the MFTP system from Monarch reduces on-site labor and additional materials while still creating a 7/8” drained and ventilated cavity behind the cladding. This cavity is required by Trespa and protects both the wall and the cladding from trapped moisture.

Installing the cladding with the Monarch system provides direct labor and material cost savings to the installer while also avoiding the ordering, handling, cutting, and fastening of 1x furring strips. These wood furring strips can degrade over time and hold moisture against the building substrate.

Features

  • Custom aluminum cladding support system for Trespa Pura NFC
  • Suitable for horizontal and vertical installation
  • Eliminates 1x furring strips and EPDM
  • 7/8” drained and ventilated cavity behind the panel (meets Trespa requirements)
  • Ventilated starter rails, edge trims, inside and outside corner profiles
  • Reduces labor, installation time, and material handling on site

See How The System Works

Click and drag the arrow sliders to see how the Trespa Pura NFC System works. Our system simplifies the installation of Trespa Pura panels by eliminating the typical 1x wood furring strips, and EPDM strips.

Trespa Pura NFC Panel & Clip
Trespa Pura NFC Panel & Clip
Trespa Clips
Panels Installed

Trespa Pura NFC Clip System for Fast, Easy Installation

Our engineered clip system secures Trespa Pura NFC panels without the need for wood furring strips. This aluminum support solution simplifies cladding installation, reduces on-site labor, and ensures panels are properly aligned and held in place.

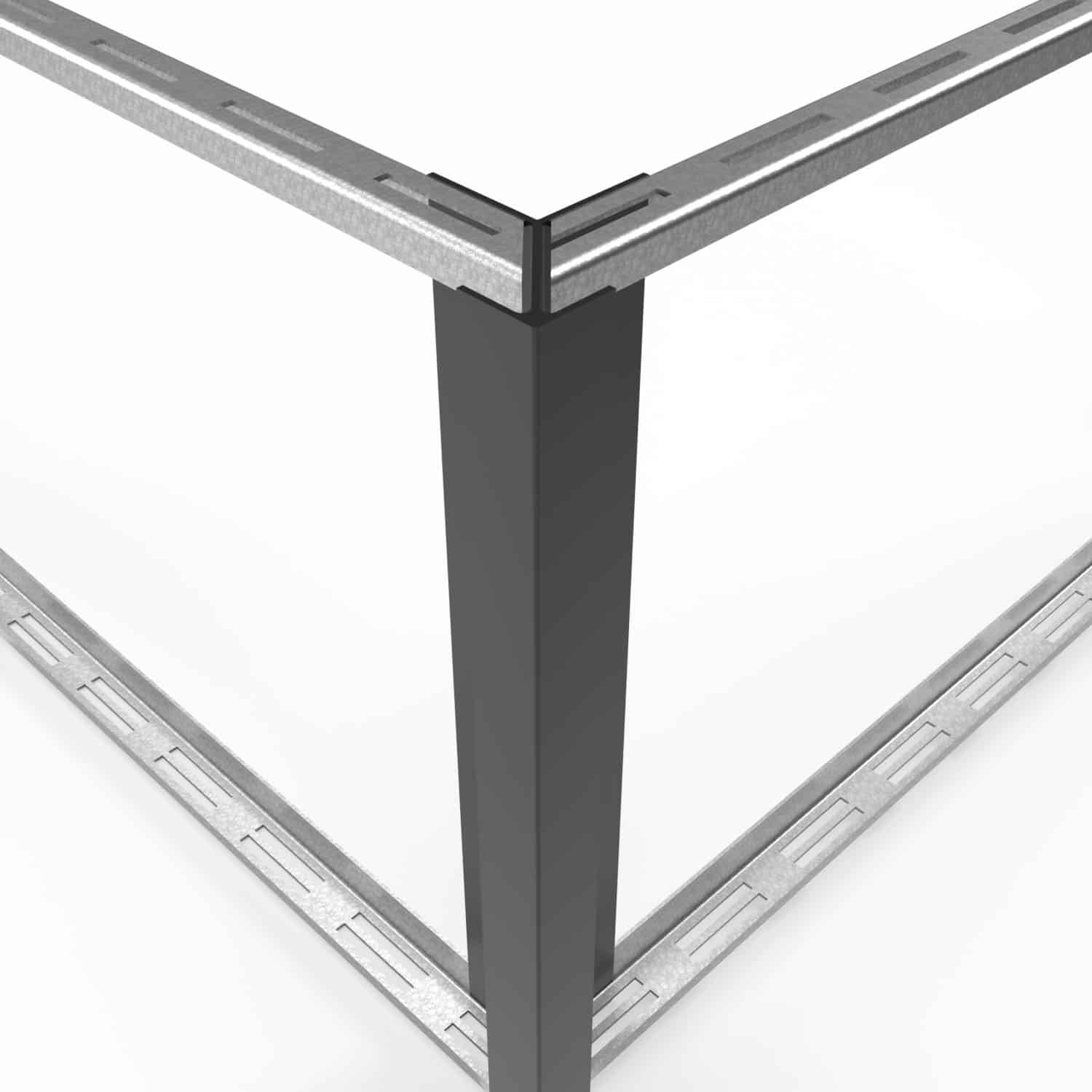

Trespa Pura NFC Rails
Trespa Pura NFC Rails
Ventilated Rails
Panels Installed

Ventilated Rain Screen Drainage System

The Monarch starter rail functions as both a secure base rail and a ventilated drainage closure, creating the required 7/8″ cavity behind Trespa Pura NFC panels. Combined with the head rail for system closure, this design maintains airflow, manages moisture, and extends the durability of the cladding system.

Learn About System Key Features

To learn about some of the unique features of our Trespa Pura NFC System, click on the hot spots (+) to reveal additional information.

Trespa Pura NFC Key Features

Trespa Pura NFC - Corners
Our outside corner is designed to cover the cut ends of the planks turning a corner while our inside corner is a great solution allowing for ventilation.

Trespa Pura NFC - System Clip
Allows you to install Trespa Pura panels without wood furring and secures the cladding in 16″ or 24” O.C intervals.

Trespa Pura NFC - Rails
Our starter rail serves both as a starter rail and ventilated system closure while our head rail is used for closing off the top of systems.

Trespa Pura NFC - Edge Trims
Our edge trims (not shown) is a useful profile and can be used all around the building envelope.

Trespa Pura NFC

Simple Trespa Pura Panel Installation

Protects Wall & Cladding From Moisture

The MFTP system from Monarch reduces on-site labor, and additional materials, but still creates a ⅞” drained and ventilated cavity behind the cladding.

Request Information

If you would like to receive more information on our Trespa Pura NFC System, please fill out this form and a representative will contact you.

  • This field is for validation purposes and should be left unchanged.
Trespa Pura NFC Cladding, Horizontal & Vertical Install System | Profiles

Trespa Pura Profiles

Trespa Pura Clip

MFTP - Clip

Trespa System Clip

Our Trespa Pura clip allows you to install Trespa Pura panels without wood furring and secures the cladding in 16″ or 24” O.C intervals

Trespa Pura Starter Rail

MFTPSR - Starter Rail

Trespa System Starter Rail

Our Trespa Pura starter rail serves both as a starter rail and ventilated system closure. It can be used at the head of windows, doors, and other penetrations.

Trespa Pura Head Rail

MFTPHR - Head Rail

Trespa System Head Rail

Our Trespa Pura head rail is used for closing off the top of systems and can also be used above windows and doors.

Trespa Pura Edge Trim

MFTPET - Edge Trim

Trespa System Edge Trim

Our Trespa Pura edge trim is a useful profile and can be used all around the building envelope. Uses include window and door trim, vertical transitions, and linear penetrations.

Trespa Pura Outside Corner

MFTPOC

Trespa System Outside Corner

Our Trespa Pura outside corner is designed to cover the cut ends of the planks turning a corner, which allows for some forgiveness in slightly uneven cuts.

Trespa Pura Inside Corner

MFTPIC

Trespa System Inside Corner

Our Trespa Pura inside corner is a great solution allowing for ventilation through the inside corner, which can be more susceptible to infiltration.

Trespa Pura NFC

Installation Videos

Horizontal Installation

Vertical Installation

Frequently Asked Questions

How do I horizontally install Trespa Pura panels with the Monarch MFTP System

Learn how to install Trespa Pura NFC panels in a horizontal layout using the Monarch Metal MFTP System. This step-by-step video shows how our rail and clip system simplifies horizontal installation while delivering durability and a clean finish.

Installation Steps

  1. Start with the MFTP Starter Rail (MFTPSR)
  2. Use a laser or chalkline to create control lines around the perimeter
  3. Place the starter rail against the wall and fasten at each stud (16–24″ O.C.)
  4. Install trim profiles (MFTPIC, MFTPET, MFTPOC) using #10 self-drilling screws
  5. Insert Trespa Pura planks into the starter rail; they rest on the upturned leg
  6. Secure planks with MFTP2.0 clips spaced 16–24″, matching stud spacing
  7. Each plank requires a fixed location; use acrylic or polyurethane construction adhesive
  8. Attach planks to clips to lock them in place
  9. Under windows and doors: measure and install MFTPHR with #10 fasteners
  10. If the final plank doesn’t fit, cut it to size and secure with color-matched fasteners
  11. Above windows/doors: for notched planks, use the MFTPHR as in the earlier step
  12. For full planks aligning with window heads, use the MFTPSR to carry the course
  13. Ensure a ventilated cavity behind the cladding for moisture protection

System Benefits

  • Simplifies horizontal installation by eliminating furring strips and EPDM
  • Reduces labor and materials while maintaining a 7/8″ ventilated cavity
  • Designed for efficiency and long-term performance

Most orders ship the same day from our New York, Texas, and Nevada locations.

Easy & efficient online ordering.

How do I vertically install Trespa Pura panels with the Monarch MFTP System

Learn how to install Trespa Pura NFC panels in a vertical layout using the Monarch Metal MFTP System. This step-by-step video shows how our rail and clip system simplifies vertical installation while delivering durability and a clean finish.

Installation Steps
1: Start with the MFTP Starter Rail (MFTPVS)
2: Use a laser or chalkline to create control lines around the perimeter of the building
3: Place the starter rail against the wall and fasten at each stud (16–24″ O.C.)
4: Install trim profiles (MFTPIC, MFTPET, MFTPOC) in their locations using #10 self-drilling screws
5: Place the Trespa Pura planks onto the flat horizontal surface of the starter rail
6: Secure planks with MFTP2.0 clips spaced 16–24″ vertically, aligned with studs or furring
7: Each plank requires a fixed location; use acrylic or polyurethane construction adhesive
8: Attach planks to clips to lock them in place
9: Under windows and doors: measure and install MFTPHR with #10 fasteners
10: If the final plank doesn’t fit, cut it to size and secure it with color-matched fasteners
11: For notched planks: use MFTPHR to secure, similar to the “Under Windows” step
12: Ensure a 7/8″ ventilated cavity remains behind the cladding for moisture protection

System Benefits
• Simplifies vertical installation by eliminating wood furring strips and EPDM
• Reduces on-site labor and extra materials while maintaining a 7/8″ drained and ventilated cavity required by Trespa
• Protects wall and cladding from trapped moisture for long-term performance
• Easily change the exterior look by installing Trespa Pura panels (sold separately)

Most orders ship the same day from our New York, Texas, and Nevada locations.
Easy & efficient online ordering.

What makes the Monarch Metal Trespa Pura NFC installation system different?

The Monarch Metal system eliminates the need for traditional 1x wood furring strips and EPDM strips. Instead, it uses a custom aluminum support system that creates a 7/8” drained and ventilated cavity behind the cladding. This reduces labor, material handling, and installation time while still meeting Trespa’s requirements.

Can Trespa Pura NFC panels be installed horizontally and vertically with this system?

Yes. The Monarch Metal support system is engineered to allow both horizontal and vertical installation of Trespa Pura NFC panels. It includes starter rails, clips, and trim profiles that simplify installation in either orientation while ensuring proper rain screen performance.

What cavity depth does the Monarch Metal cladding system provide?

The system provides a 7/8” drained and ventilated cavity behind the Trespa Pura NFC panels. This cavity is required by Trespa to ensure moisture management and long-term durability of both the cladding and the wall assembly.

What are the spacing requirements for Trespa Pura NFC panels with this system?

Panels can be installed at either 16-inch or 24-inch on-center spacing when using the Monarch Metal system. This flexibility allows contractors and designers to align with stud layouts while maintaining system performance.

What are the main components of the Monarch Metal Trespa Pura NFC support system?

The system includes custom aluminum starter rails, planks, MFTP 2.0 clips, ventilated starter trims, edge trims, and optional accessory profiles. These components work together to hold the panels securely while maintaining proper ventilation.

How does the Monarch Metal system save installers time and cost?

By eliminating the ordering, cutting, and fastening of wood furring strips, the system reduces jobsite steps and material waste. Installers benefit from easier alignment, faster panel attachment, and lower labor costs compared to traditional installation methods.

Product Specifications

Material

Aluminum
Projection

7/8 Inch

Product Downloads

MFTP Installation Guide | Horizontal & Vertical

Download our installation guide for the MFTP system

MFTP System Component Drawings

Download system component drawings for each profile.

MFTP Technical Drawings (DWG)

Download technical drawings in DWG format.
