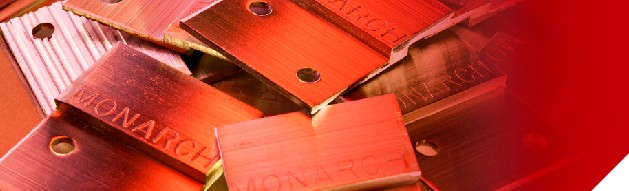

Monarch Z Clip | Panel Clip Specifications, Dimensions and Sizes
Below is a table of the most frequently asked for dimensions and sizes for our Monarch Z Clips | Panel Clips. While we carry continuous lengths in stock sizes of 144″ and 72″, we also custom cut them to any size that you desire. The “Lift-Off” is the amount you need to raise the panel over its resting height to mount the panel. The “Projection” is the distance that the panel sits out from the wall.
- MF-625
- MF-375
- MF-S/S
- Material
- Aluminum
- Aluminum
- Stainless Steel
- Stock clip size
- 1.5″
- 2.0″
- 1.5″
- Stock continuous – length
- 72″, 144″
- 72″, 144″
- 48″
- Custom lengths available
- Any
- Any
- Any
- Lift-off
- 5/8″
- 3/8″
- 3/4″
- Projection
- 3/16″
- 1/4″
- 1/4″
- Architectural Drawing
Download PDF- Download PDF
- Download PDF
- AutoCad Drawing
Download DWG- Download DWG
- Download DWG
- CSI 3 Part Specification
Download DOC- Download DOC
- Download DOC
- CSI 3 Part Specification PDF
- Download PDF
- Download PDF
- Download PDF
- Weight/Load Bearing Data
- Download PDF
- Download PDF
- NA
- Load Rating Testing Summary
- Download PDF
- Download PDF
- NA
